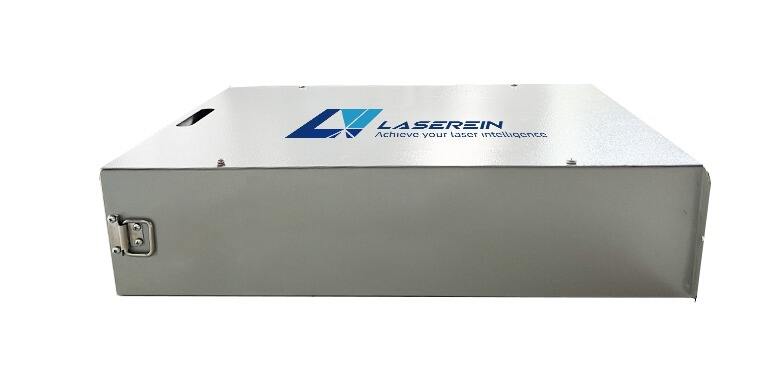

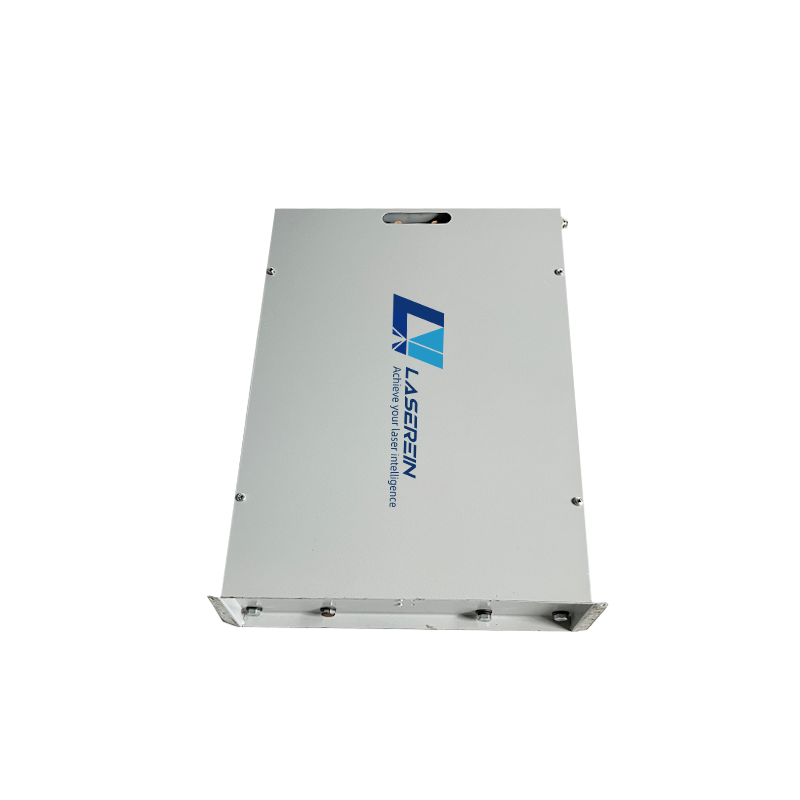

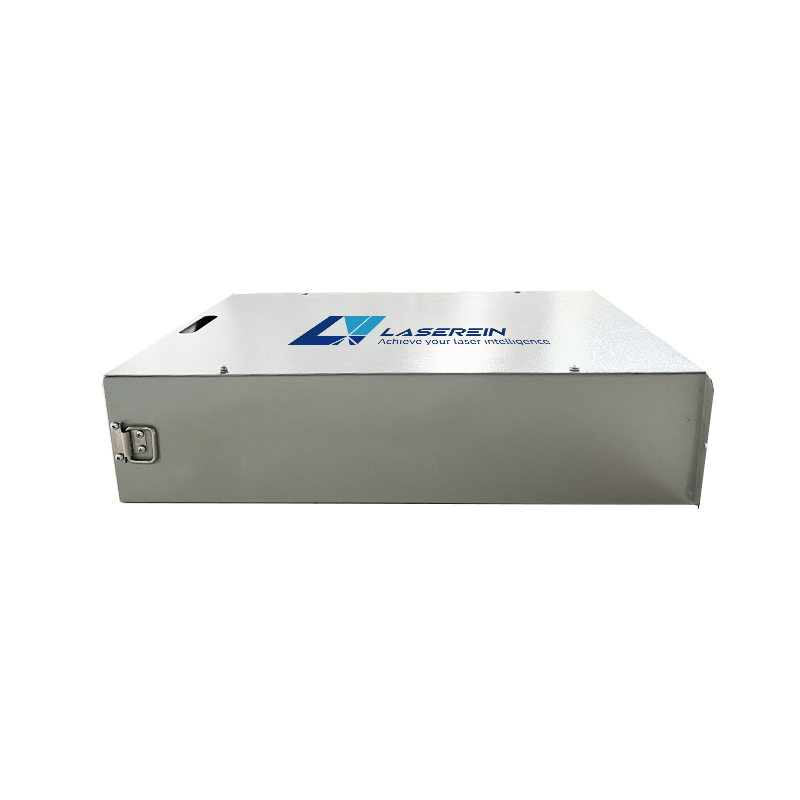

Welding Mate suitable for low-flow flexible nitrogen gas usage scenarios
Type: WMC01
Application: Laser welding, cleaning, metal 3D printing, heat treatment, brazing, etc.
Suitable for small-flow flexible nitrogen gas usage scenarios
Welding Mate is a compact nitrogen generator that ensures on-site production of nitrogen gas up to 10M3/H (purity 99.99%). This all-in-one nitrogen generator, based on PSA technology, is an ideal choice for small and medium-sized enterprises seeking safe, economical, convenient, and reliable nitrogen supply.
*Lightweight and Flexible for Easy Integration: suitable for handheld laser welding machine applications and can be easily integrated into welding equipment, whether built-in or externally mounted.
| WMP Series Standard Model | |
| Type | WMC01 |
| Purity (%) up to 99.999%, not lower than 99.95% during operation. | 99.99 |
| Nitrogen production(m³/h) | 1 |
| Effective Air Consumption(m³/min) | 0.08 |
| Dimension(LWH mm) | 483*182*682 |
| G.W.(KG) | 20 |
| Control Mode | PLC automatic control, purity display, adjustable flow rate and pressure functions available |
| Auto Start - Stop | Standard Function |
| Power Supply (V/HZ) | 220/50(Different voltage customizable) |
| Inlet Pressure(Mpa) | ≥0.65,≤0.8 |
| N2 Production Pressure(Mpa) | ≥0.55,≤0.7 |
| Built - in gas storage tank(L) | 2.4 |
| Filters | None |
| External Gas Tank | Optional |
| Gas Source Requirements | External compressed air supply with a refrigerated air dryer and filters installed |
Laser welding, cleaning, metal 3D printing, heat treatment, brazing, etc.
