| Average output power: (W) | 6000 |
| Central wavelength: (nm): | 1080±5 |
| Maximum modulation frequency: (kHz): | 20 |
| Output power instability: | ±1.5% |
| Output connector: | QBH |
| Output fiber core diameter (μm): | 50-75 (customizable) |
| Beam quality（BBP）: | 2.7-3.1 |
| Output fiber length (m): | 20(customizable) |
| Input power (V AC ): | 380±10%,Three Phase-four Wire Connect |
| Control Mode: | RS232, AD ,Ethernet |
| Power adjustment range (%): | 10-100 |
| Working temperature (℃ ): | 10-40 |
| Cooling method: | water cooling |

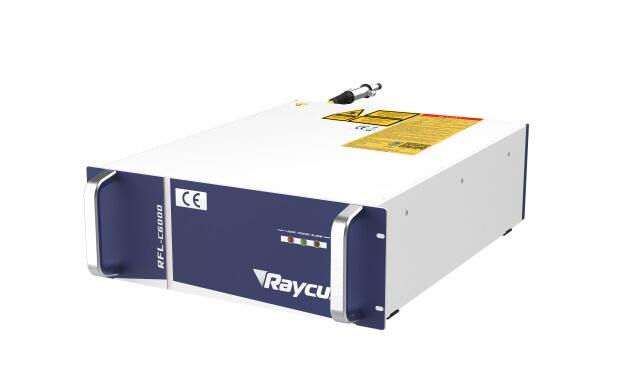

| Characteristics Of 6000W Global-Series CW Fiber Laser | ||
| High electro-optical conversion efficiency | ||
| High electro-optical conversion efficiency | Output fiber length can be customized | Editable waveform |
| High electro-optic conversion efficiency | Maintenance-free operation | Wide modulation frequency range |
| Optical properties | ||
| Average output power: (W): 6000 | Central wavelength: (nm): 1080±5 | Maximum modulation frequency: (kHz): 20 |
| Output power instability: ±1.5% | Red laser: Yes | |
| Output characteristics | ||
| Output connector: QBH (customizable) | Output fiber core diameter (μm): 50-75 (customizable) | Beam quality（BBP）:2.7-3.1 |
| Polarization state: random | Output fiber length (m): 20(customizable) | |
| Electronic control characteristics | ||
| Input power (V AC ): 380±10%, Three Phase-four Wire Connect | Control Mode: RS232, AD ,Ethernet | Power adjustment range (%): 10-100 |
| Other characteristics | ||
| Dimensions (mm ): 485×172×802(handle included) | Weight (kg): 80 | Cooling method: water cooling |
| Working temperature (℃ ): 10-40 | ||
