| Average output power: (W): | 20000 |
| Central wavelength: (nm): | 1080±5 |
| Maximum modulation frequency: (kHz): | 2 |
| Output power stability: | ±1.5% |
| Input power (V AC ): | 323-436, Three Phase-four Wire Connect.@47-63Hz |
| Control mode: | RS232, AD,Ethernet |
| power adjustment range (%): | 10-100 |
| Dimensions (mm ): | 960*1530*1160(handle included) |
| Working temperature (℃ ): | 10-40 |
| Cooling method: | water cooling |

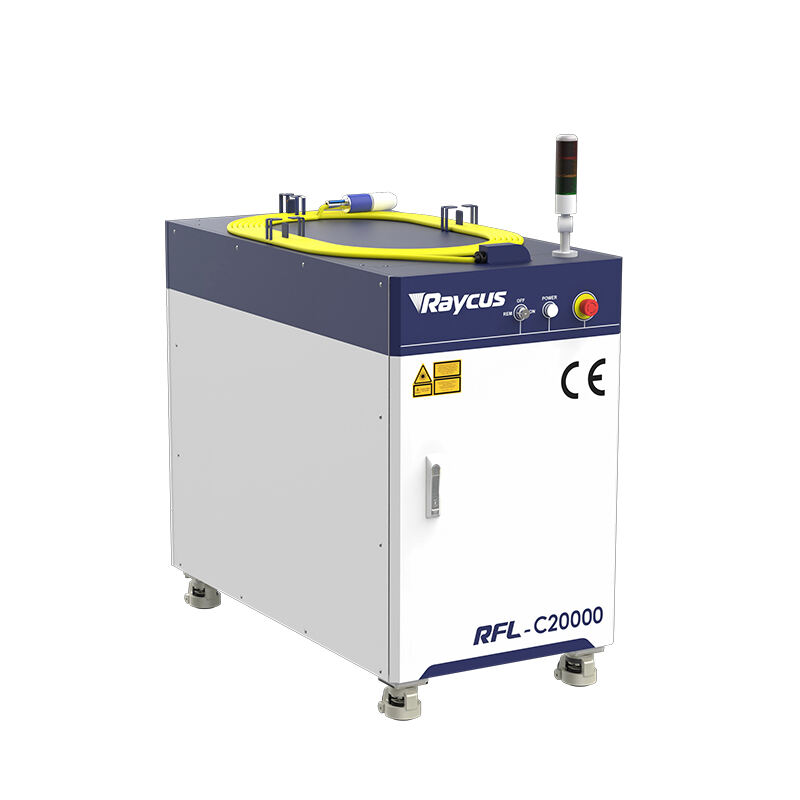

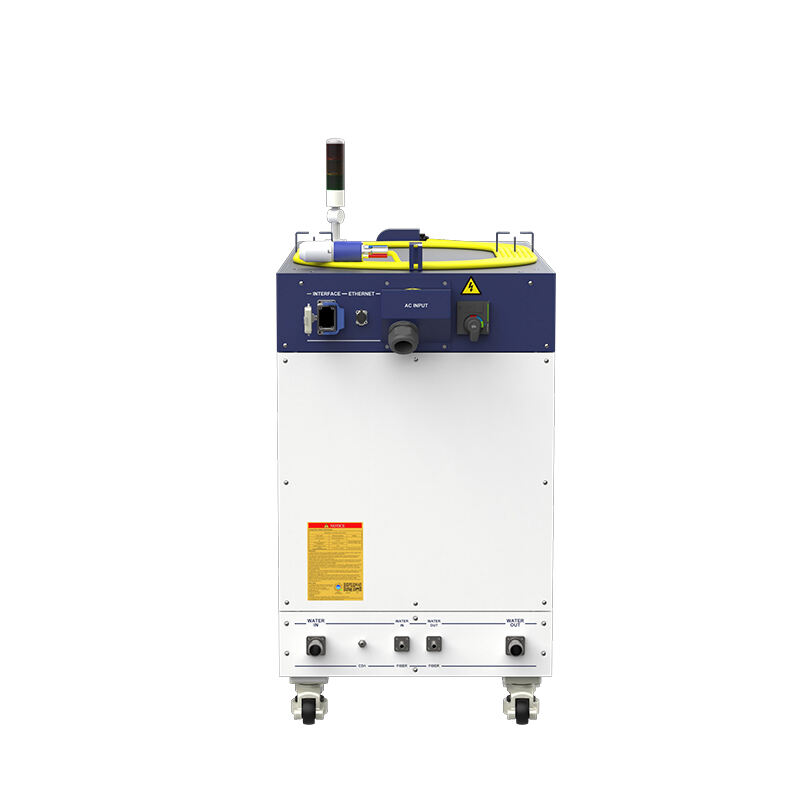

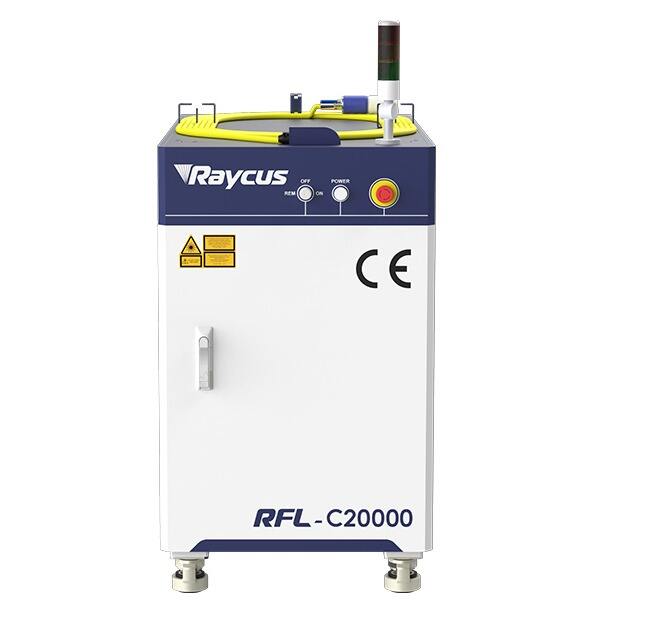

| Characteristics Of 20000W Global-Series CW Fiber Laser | ||
| Technical characteristics | ||
| High Electro-optical Conversion Efficiency | Customized Output Fiber Length | Output cable:QP |
| Maintenance-free Operation | Wide Modulation Frequency Range | |
| Optical Properties | ||
| Average output power: (W): 20000 | Central wavelength: (nm): 1080±5 | Maximum modulation frequency: (kHz): 2 |
| Output power stability: ±1.5% | Red laser: Yes | |
| Electronic control characteristics | ||
| Input power (V AC ): 323-436, Three Phase-four Wire Connect.@47-63Hz | Control mode: RS232, AD,Ethernet | power adjustment range (%): 10-100 |
| Other characteristics | ||
| Dimensions (mm ): 960*1530*1160(handle included) | Weight (kg): <700 | Cooling method: water cooling |
| Working temperature (℃ ): 10-40 | ||
