| Average output power: (W)： | 2000 |
| Central wavelength: (nm): | 1080±5 |
| Maximum modulation frequency: (kHz): | 5 |
| Output power instability: | ±1% |
| Output connector: | IQB |
| output fiber core diameter (μm): | 25 (customizable) |
| beam quality(m2): | <1.8 |
| output fiber length (m): | 10(customizable) |
| Input power (V AC ): | 220 |
| power adjustment range (%)： | 1-100 |
| Max. Power Consumption: | ＜6.5kW |
| Working temperature (℃ ): | 10-40 |
| Cooling method: | water cooling |

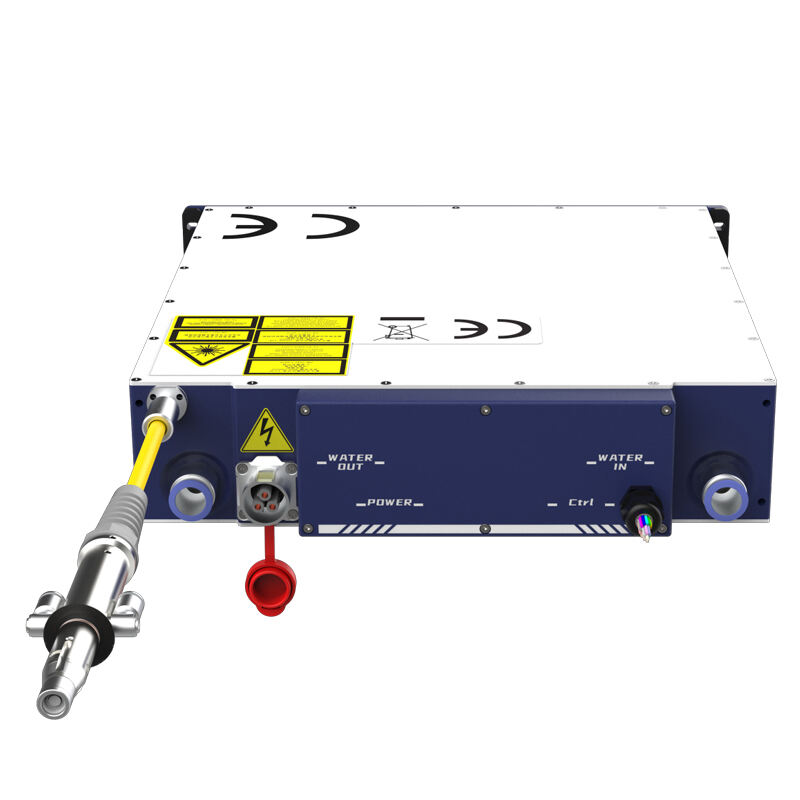

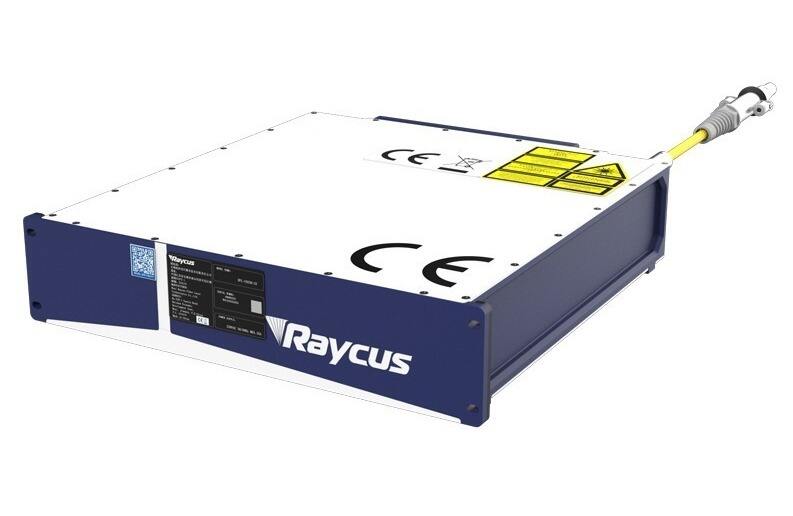

| Characteristics Of 2000W Global-Series CW Fiber Laser for Handheld Welding | ||
| Technical characteristics | ||
| Lightweight | High efficiency | Maintenance-free operation |
| High beam quality | High integration | Portable |
| Optical properties | ||
| Average output power: (W): 2000 | Central wavelength: (nm): 1080±5 | Maximum modulation frequency: (kHz): 5 |
| Output power instability: ±1% | Red laser: Yes | |
| Output characteristics | ||
| Output connector: IQB | output fiber core diameter (μm): 25 (customizable) | beam quality(m2):<1.8 |
| polarization state: random | output fiber length (m): 10(customizable) | |
| Electronic control characteristics | ||
| Input power (V AC ): 220 | Control mode: Control line/Bluetooth, Ethernet | power adjustment range (%): 1-100 |
| Max. Power Consumption:＜6.5kW | ||
| Other characteristics | ||

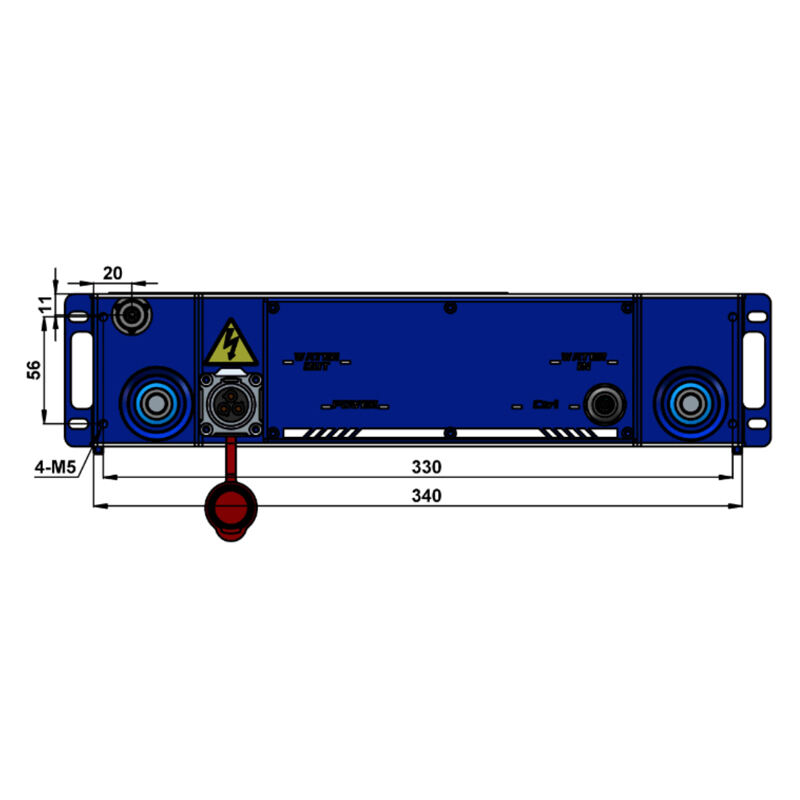

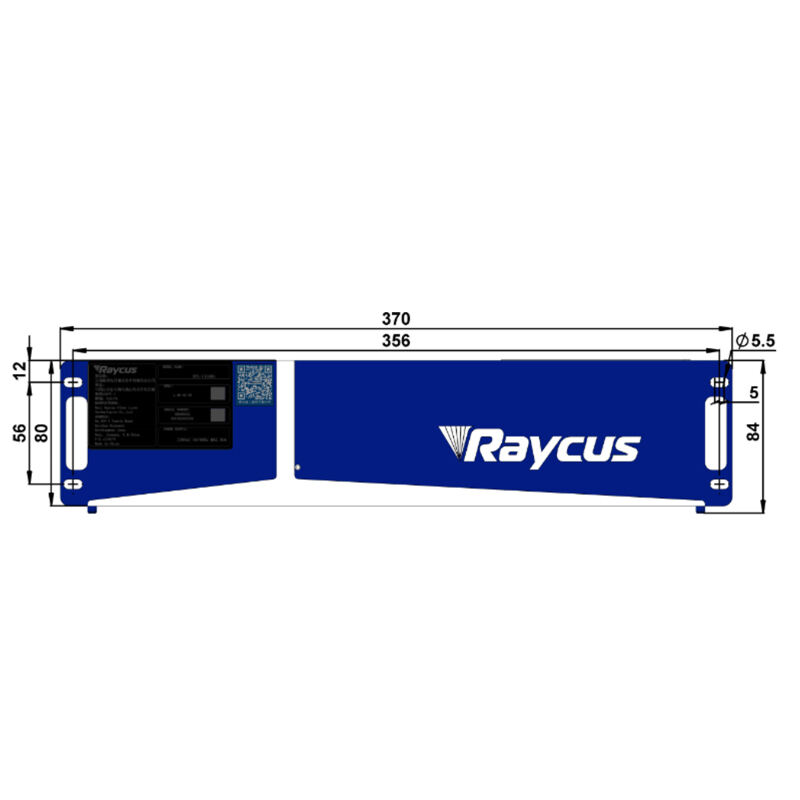

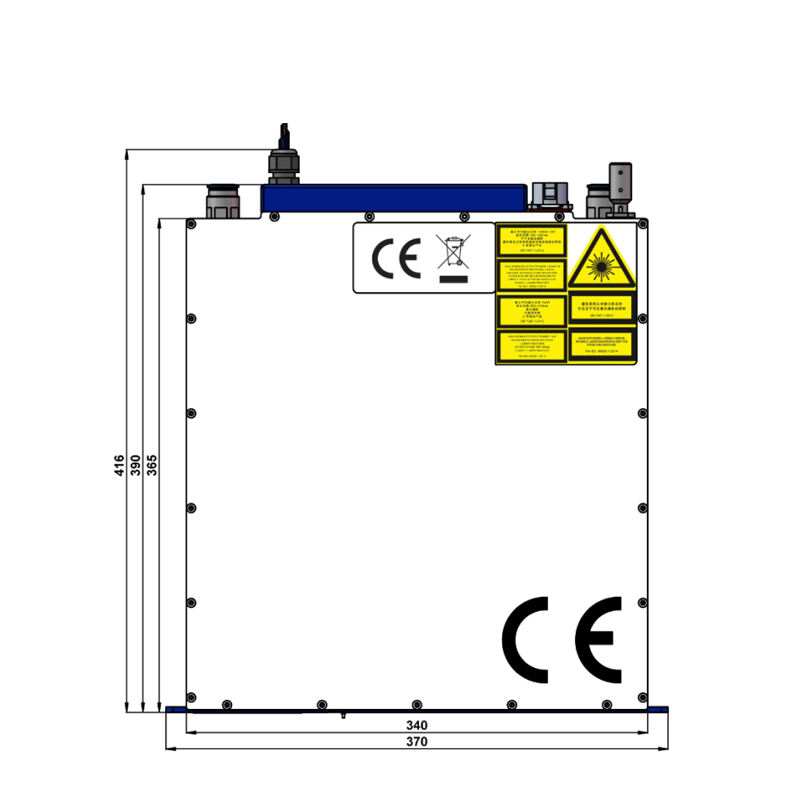

| Dimensions (mm ): 340×390×80 | Weight (kg): 3±1 | Cooling method: water cooling |
| Working temperature (℃ ): 10-40 | ||
