| Average output power (W)： | 1200 |
| Central wavelength (nm): | 1080±5 |
| Maximum modulation frequency (kHz): | 5 |
| Output power instability: | ±1% |
| Output connector: | IQB |
| output fiber core diameter (μm): | 25 (customizable) |
| output fiber length (m): | 10(customizable) |
| Input power (V AC ): | 40-48 |
| Max. Power Consumption: | ＜3.5kW |
| power adjustment range (%): | 1-100 |
| Working temperature (℃ ): | 10-40 |
| Cooling method: | water cooling |

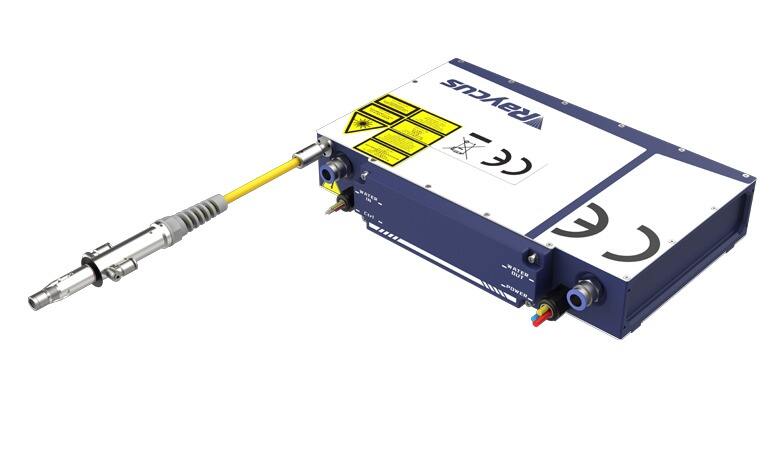

The Global-Series Handheld welding CW fiber lasers Range from 600W -3000W. This series laser source dedicated for both water-cooled and air-cooled handheld welding can be supported with one hand and comes with an external AC power supply, making it more efficient for integration into welding machines. Its optical cable is adapted tolocking head and the armored pipe diameter is smaller, which reduces drag force during handheld welding.
| Characteristics Of 1200W Global-Series CW Fiber Laser for Handheld Welding | ||
| Technical characteristics | ||
| Lightweight | High efficiency | Maintenance-free operation |
| High beam quality | High integration | Portable |
| Optical Properties | ||
| Average output power: (W): 1200 | Central wavelength: (nm): 1080±5 | Maximum modulation frequency: (kHz): 5 |
| Output power instability: ±1% | Red laser: Yes | |
| Output characteristics | ||
| Output connector: IQB | output fiber core diameter (μm): 25 (customizable) | beam quality(m2):<1.8 |
| polarization state: random | output fiber length (m): 10(customizable) | |
| Electronic control characteristics | ||
| Input power (V AC ): 40-48 | Control mode: Control line/Bluetooth, Ethernet | power adjustment range (%): 1-100 |
| Max. Power Consumption:＜3.5kW | ||
| Other characteristics | ||
| Dimensions (mm ): 370×215×68 | Weight (kg): 3±1 | Cooling method: water cooling |
| Working temperature (℃ ): 10-40 | ||
