| Average output power: (W): | 60000 |
| Central wavelength: (nm): | 1080±5 |
| Maximum modulation frequency: (kHz): | 2 |
| Output power stability: | ±1.5% |
| Output connector: | HQP |
| Output fiber core diameter (μm): | 150(customizable) |
| BPP（mm.mrad) | ≤6.5 |
| Output fiber length (m): | 30 |
| Input power (V AC ): | 323-436, Three Phase-four Wire Connect.@47-63Hz |
| Control mode: | Hardwire/Analog/RS232/AD |
| Power adjustment range (%): | 10-100 |
| Working temperature (℃ ): | 10-40 |
| Cooling method: | water cooling |

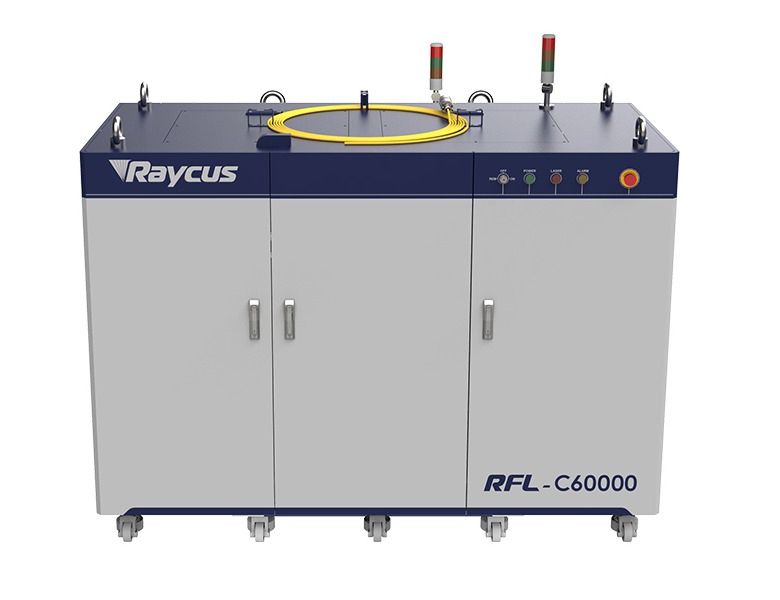

| Characteristics Of 60000W Global Series CW Fiber Laser | ||
| Technical characteristics | ||
| High Electro-optical Conversion Efficiency | Customized Output Fiber Length | Output cable:HQP |
| Maintenance-free Operation | Wide Modulation Frequency Range | |
| Optical Properties | ||
| Average output power: (W): 60000 | Central wavelength: (nm): 1080±5 | Maximum modulation frequency: (kHz): 2 |
| Output power stability: ±1.5% | Red laser: Yes | |
| Output characteristics | ||
| Output connector: HQP | Output fiber core diameter (μm): 150(customizable) | BPP（mm.mrad)≤6.5 |
| Polarization state: random | Output fiber length (m): 30 | |
| Electronic control characteristics | ||
| Input power (V AC ): 323-436, Three Phase-four Wire Connect.@47-63Hz | Control mode:Hardwire/Analog/RS232/AD | Power adjustment range (%): 10-100 |
| Other characteristics | ||
| Dimensions (mm ): 1850×1730×1410(handle included) | Weight (kg): <1650 | Cooling method: water cooling |
| Working temperature (℃ ): 10-40 | ||
