Product Highlights

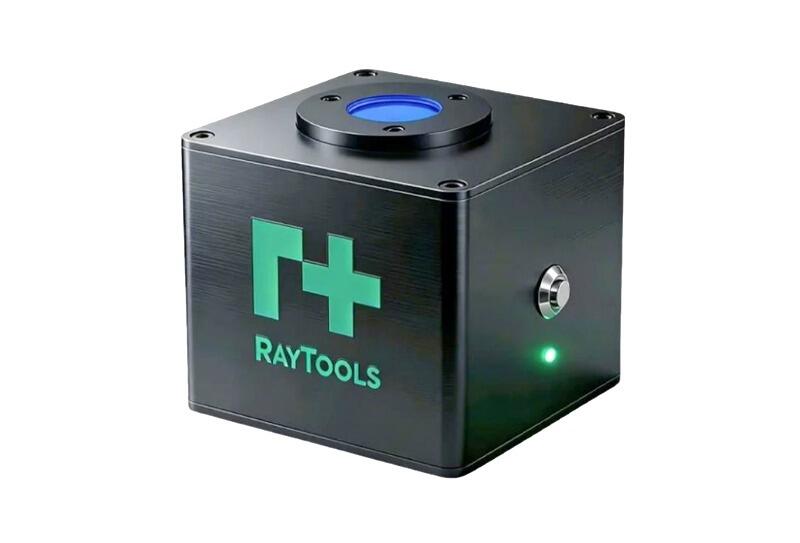

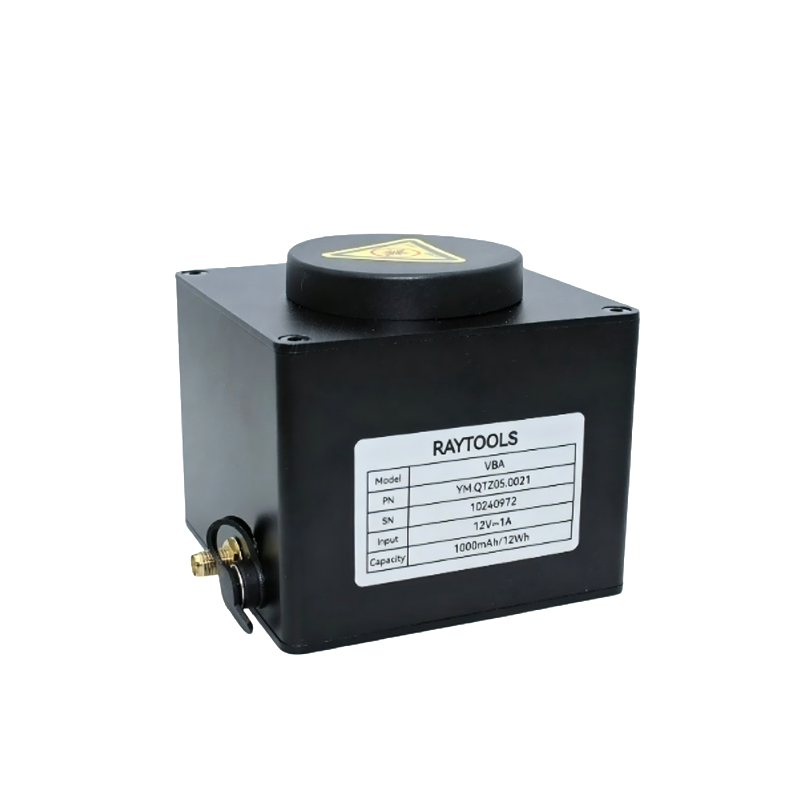

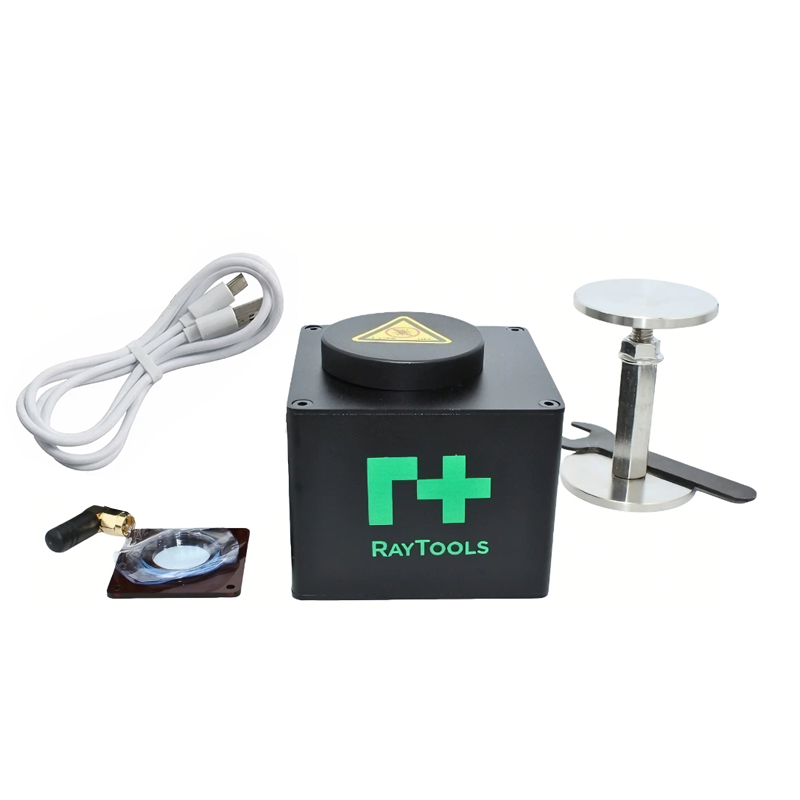

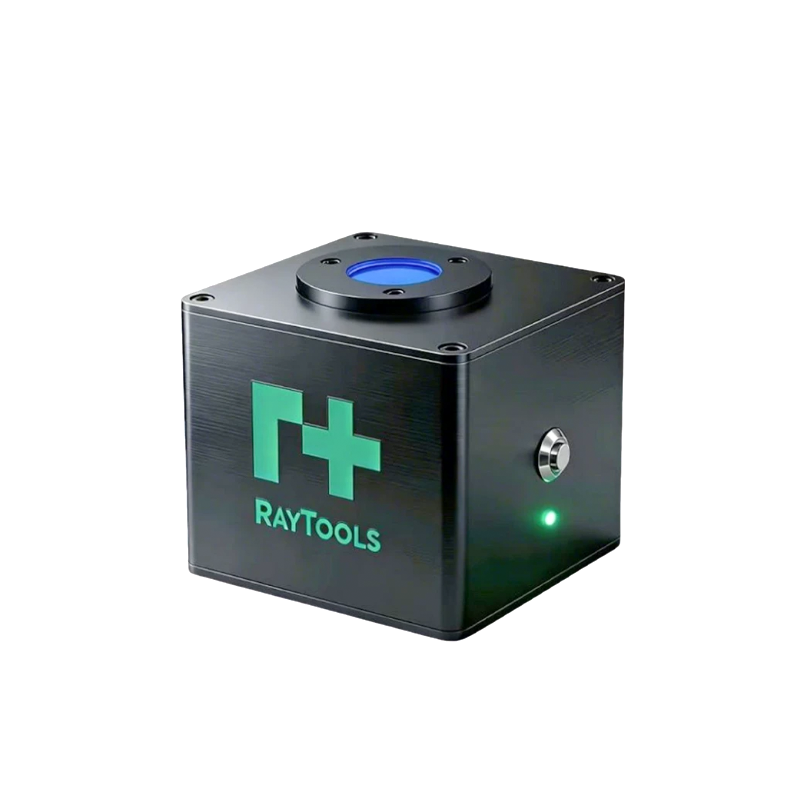

VBA (Visual Beam Align) Module--WIFI Edition
* Language: follow the system language by default. Support Simplified Chinese, English, Spanish, French, Arabic, Russian, German, Portuguese, and Italian
* WIFI Edition: Type C Charging Port (5V-2A Power Input)
* Support to adjust brightness for the blue light source.
* Check Model Update: support online updates of AI model files.
Common coaxial calibration is mainly performed by manual operation and operator experience, typically requiring 3–5
minutes. And human error may cause poor cutting quality, inconsistent cutting edges, and slags at the part bottom, etc.
VBA (Visual Beam Align) Module--WIFI Edition utilizes AI-based vision technology combined with a high-precision circle
fitting algorithm to improve calibration accuracy and efficiency.

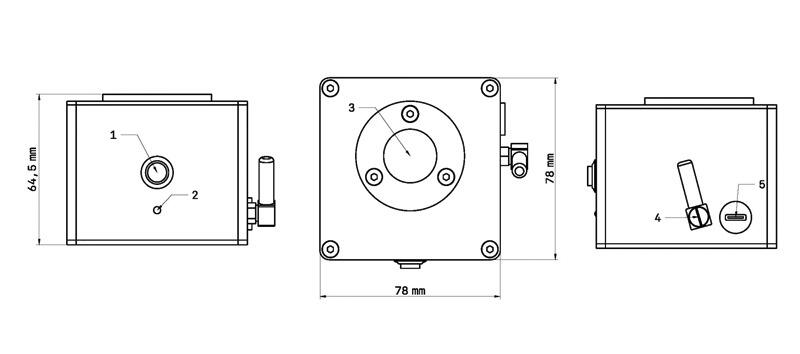

| Product Size |
78mm×78mm×65mm |
| Product Weight |
0.3kg |
| Calibration Method |
Identify red beam |
| Calibration Accuracy |
<0.08 mm |
| Power Supply |
Built-in lithium battery/12V Power supply |
| Connection Method |
WiFi |
| C.G Specifications |
φ25mm×1mm |
| Application |
Various laser cutting/processing equipment |
| Industry APP |
Android/iOS |
Product Functions:

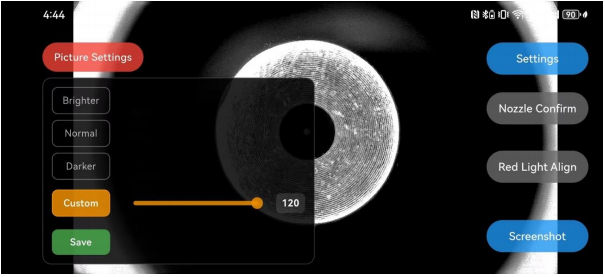

• Setting: Select the appropriate setting based on the red beam intensity and image quality.
• Nozzle Confirm: The trained AI model auto identifies the nozzle center. After recognition, the image can be
zoomed in or out for inspection.
• Red Light Align: Once the center is identified and marked, the red beam can be manually adjusted to align with the
marked center.
• Screenshot: Capture and save the current image directly to the mobile device.

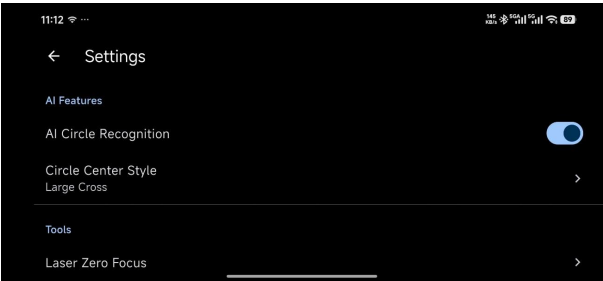

• AI Circle Recognition: Enable or disable the AI-based circle recognition function.

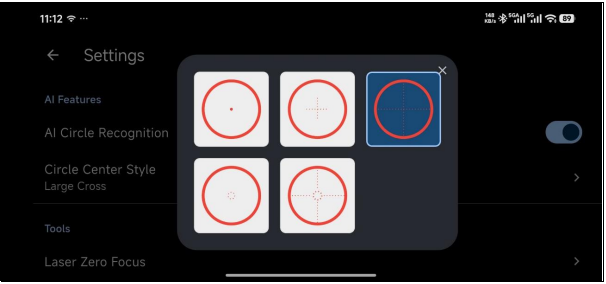

• Circle Center Style: Five built-in styles are available and can be switched according to the actual applications.

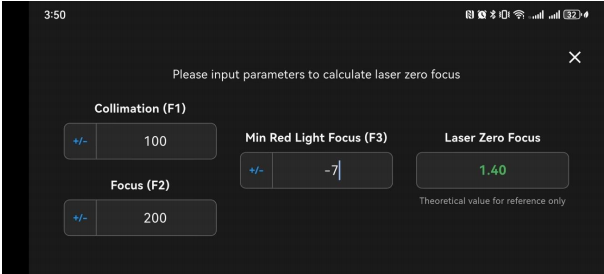

• Laser Zero Focus: After the image becomes clear, adjust the focus position until the red laser spot is at its smallest,
and enter the focus value at “Min Red Light Focus”. Then the value of laser zero focus can be auto calculated.
•
Language: follow the system language by default. Support Simplified Chinese, English, Spanish, French, Arabic,
Russian, German, Portuguese, and Italian.

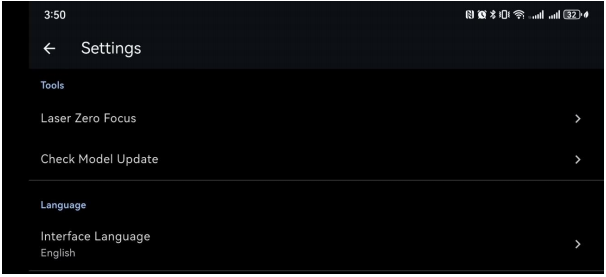

Check Model Update: support online updates of AI model files.
