Laser Cutting Nozzle

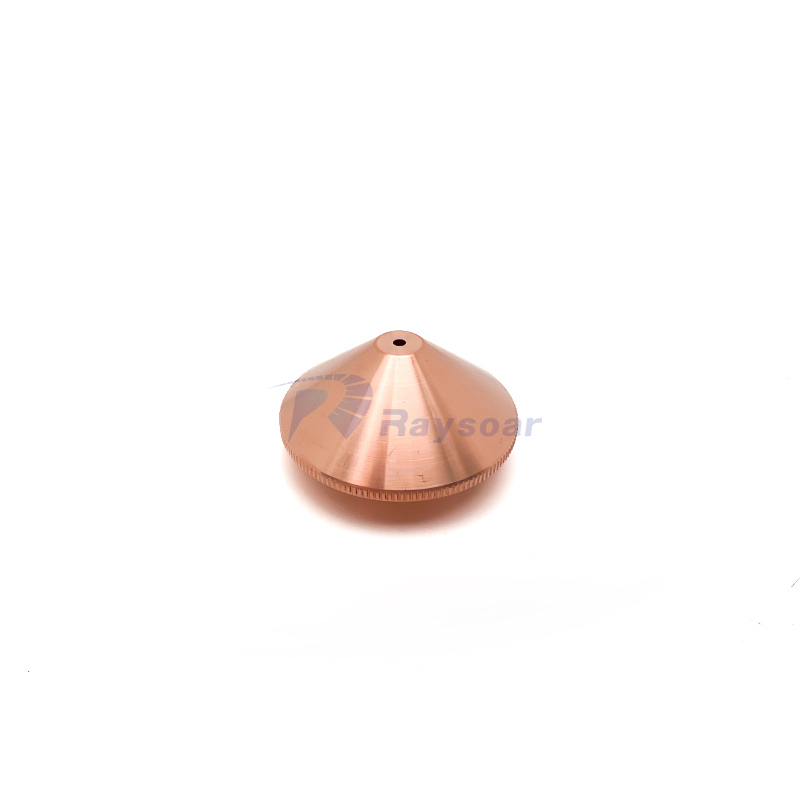

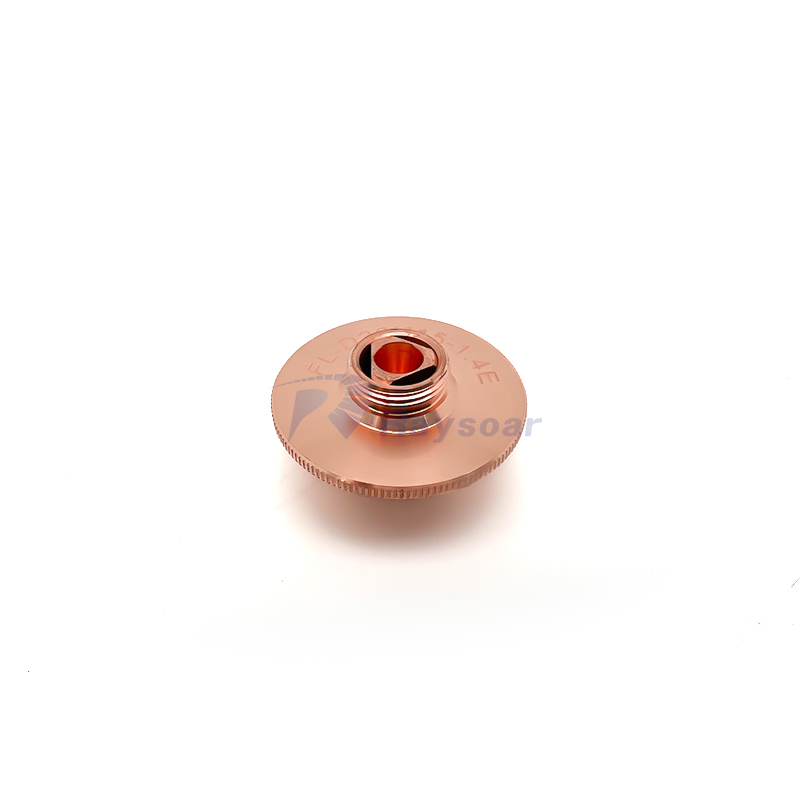

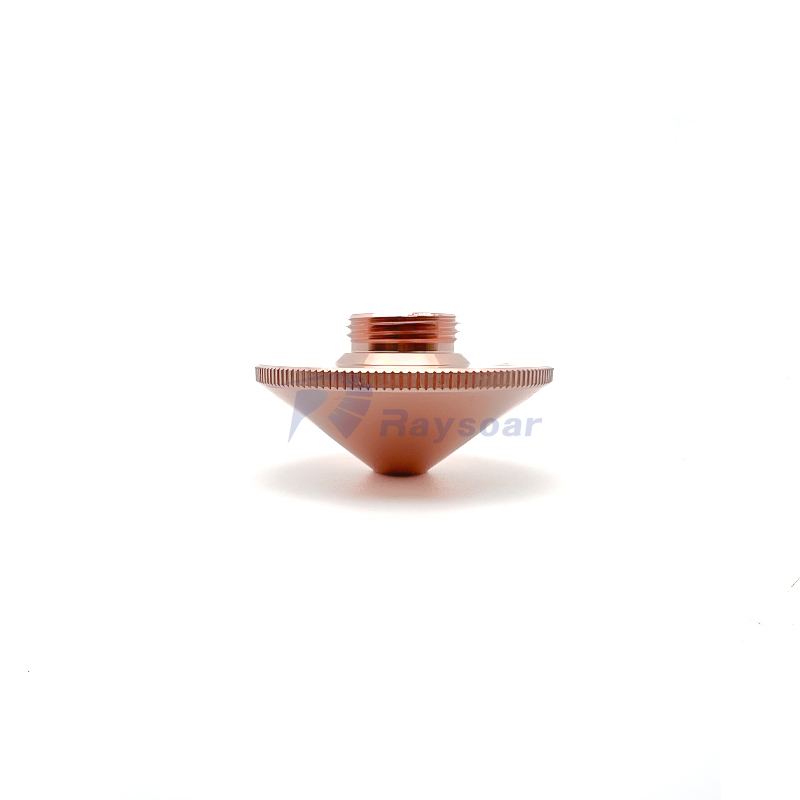

Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head
Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head
Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head
Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head
Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head
Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head
Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head
Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head

Raysoar D28 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head

Dimensions D28 H15 M11
Caliber Available 1.2-2.0
Single/Double Layer Double Layer
Chrome Plated Natural color
Material Copper
Applicable OEM brand

Precitec
Get a Quote
Product Overview
Raysoar P/N
Description
OEM Ref.No.
Cutting Thickness
LPTN10-5912
Nozzle – 1.2 mm double
LPTN10-5914
Nozzle – 1.4 mm double
LPTN10-5915
Nozzle – 1.5 mm double
LPTN10-5916
Nozzle – 1.6 mm double
LPTN10-5918
Nozzle – 1.8 mm double
LPTN10-5920
Nozzle – 2.0 mm double

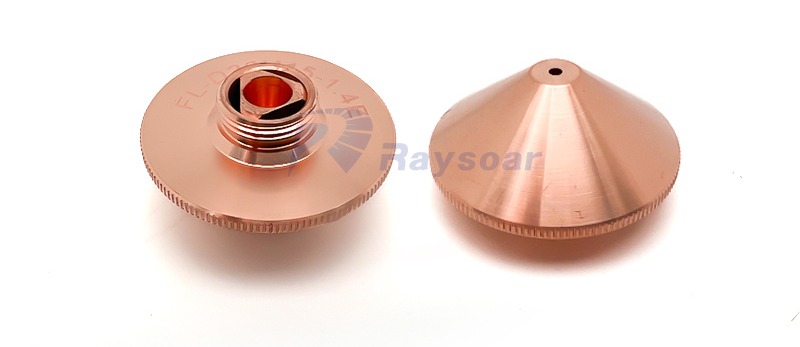

LPTN10-5912 4 - 副本.jpg

P/N:LCKN12-19XX

Product Features
●Strict selection of premium copper material, good heat dissipation
●Good thermostability and Slag Resistance ●High Machining Accuracy ●Fast Cutting Speed ●Long Service Life
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-8

Professional Production Equipment
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-9

Quality Guaranty From Professional Inspection Instruments
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-10
Continuous Technology Innovation Enhanced Productivity

HD Series Nozzles-100% Longer LIfespan

Base material: Copper Alloy Concentricity: 0.03~0.05mm
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-11
Mechanical Properties
Copper Alloy
T2 Copper
T3 Copper
Tensile Strength
350 - 380 MPa
195 - 220 MPa
200 - 240 MPa
Yield Strength
330 - 370 MPa
60 - 80 MPa
65 - 85 MPa
Vickers Hardness
100 - 110 HV
40 - 50 HV
45 - 55 HV
Item
HD Series
Ordinary T2/T3 Products
Material
Alloy copper substrate, hardness increased by 100%, wear-resistant and not easily deformed
T2/T3 copper is soft, nozzle tip wears easily
Surface Treatment
Hard chrome plating, significantly improves surface hardness and wear resistance
Provides only slight surface protection
Concentricity
High concentricity, ensures cutting quality
Low concentricity, poor cutting performance
After-sales Service
Professional guidance, ensures user experience
After-sales quality varies
Raysoar Nozzle Family
Over 2800 nozzle P/Ns cover the application by most domestic and overseas laser cutting machines.
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-12
When to Replace Your Nozzle?
●Slags caused during cutting blocked up the nozzle. ●Heating caused the distortion of the nozzle. ●Severe Collision caused the damage to the tip surface. ●Heating caused the drop of the nozzle core.
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-13
Installation and Maintenance
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-14

Replacement of nozzle

1. Unscrew the nozzle; 2.Replace the new nozzle and retighten it with proper force. 3.The recalibration is necessary after each time of replacement of the ceramic holder or nozzle.
Our Company
Established in 2010, Shanghai Raysoar Electromechanical Equipment Co.,Ltd. is a professional company that provides one-stop products and services for the maintenance, repair and operation (MRO) of modern laser industrial equipment.
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-15
raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-16
Our Business

Laser Equipment Consumables

raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-17

Laser Equipment Parts

raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-18

On-site Nitrogen Generating System

raysoar d28 h15 m11mm double layer cutting laser nozzle for precitec laser cutting head-19
Laser Cutting Head Repair & Fiber Laser Source Repair
