Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head
Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head

Raysoar D25 H15 M11mm Single Double Layer Cutting Laser Nozzle for Ospri Laser Cutting Head

Product Name： Single/Double Nozzle

Specification: D25 H15 M11mm

Application: OSPRI Laser Cutting Head

Raysoar P/N: LOSN05-59XX, LOSN06-59XX

Calibers Available: 1.0~5.0mm for Single Layer,

1.0~5.0for Double Layer

Get a Quote

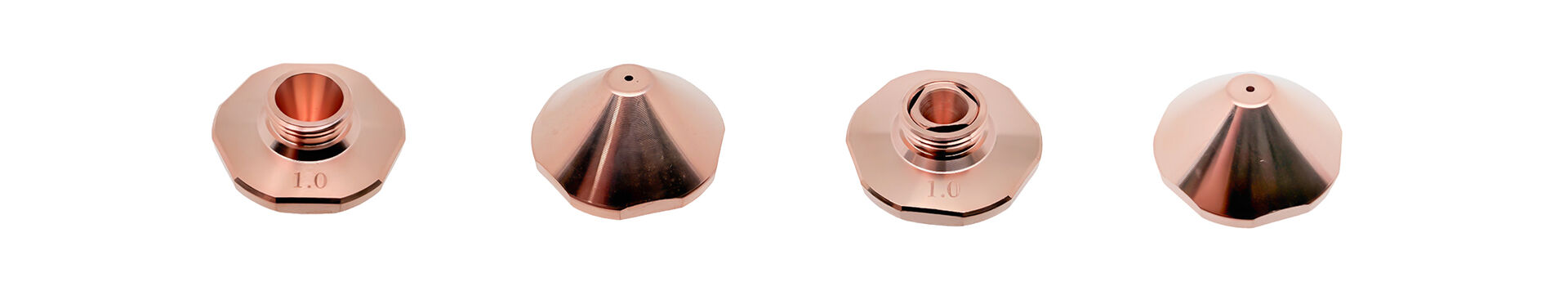

Product Overview
LOSN05-5910 5 - 副本.jpg


P/N:LOSN05-59XX

LOSN06-5910-6 - 副本.jpg

P/N:LOSN06-59XX

Product Features
●Strict selection of premium copper material, good heat dissipation
●Good thermostability and Slag Resistance ●High Machining Accuracy ●Fast Cutting Speed ●Long Service Life
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head details

Professional Production Equipment
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head details

Quality Guaranty From Professional Inspection Instruments
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head factory
Continuous Technology Innovation Enhanced Productivity

HD Series Nozzles-100% Longer LIfespan

Base material: Copper Alloy Concentricity: 0.03~0.05mm
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head manufacture
Mechanical Properties
Copper Alloy
T2 Copper
T3 Copper
Tensile Strength
350 - 380 MPa
195 - 220 MPa
200 - 240 MPa
Yield Strength
330 - 370 MPa
60 - 80 MPa
65 - 85 MPa
Vickers Hardness
100 - 110 HV
40 - 50 HV
45 - 55 HV
Item
HD Series
Ordinary T2/T3 Products
Material
Alloy copper substrate, hardness increased by 100%, wear-resistant and not easily deformed
T2/T3 copper is soft, nozzle tip wears easily
Surface Treatment
Hard chrome plating, significantly improves surface hardness and wear resistance
Provides only slight surface protection
Concentricity
High concentricity, ensures cutting quality
Low concentricity, poor cutting performance
After-sales Service
Professional guidance, ensures user experience
After-sales quality varies
Raysoar Nozzle Family
Over 2800 nozzle P/Ns cover the application by most domestic and overseas laser cutting machines.
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head manufacture
When to Replace Your Nozzle?
●Slags caused during cutting blocked up the nozzle. ●Heating caused the distortion of the nozzle. ●Severe Collision caused the damage to the tip surface. ●Heating caused the drop of the nozzle core.
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head supplier
Installation and Maintenance
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head factory

Replacement of nozzle

1. Unscrew the nozzle; 2.Replace the new nozzle and retighten it with proper force. 3.The recalibration is necessary after each time of replacement of the ceramic holder or nozzle.
Our Company
Established in 2010, Shanghai Raysoar Electromechanical Equipment Co.,Ltd. is a professional company that provides one-stop products and services for the maintenance, repair and operation (MRO) of modern laser industrial equipment.
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head supplier
Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head details
Our Business

Laser Equipment Consumables

Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head manufacture

Laser Equipment Parts

Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head manufacture

On-site Nitrogen Generating System

Raysoar D25 H15 M11mm Double Layer Cutting Laser Nozzle for Precitec Laser Cutting Head supplier
Laser Cutting Head Repair & Fiber Laser Source Repair
