Raysoar CO2 Focusing Lens Lens Men 1.5"Dia/7.5"5.0"FL/0.29"ET 088114 097517 for Trmupf

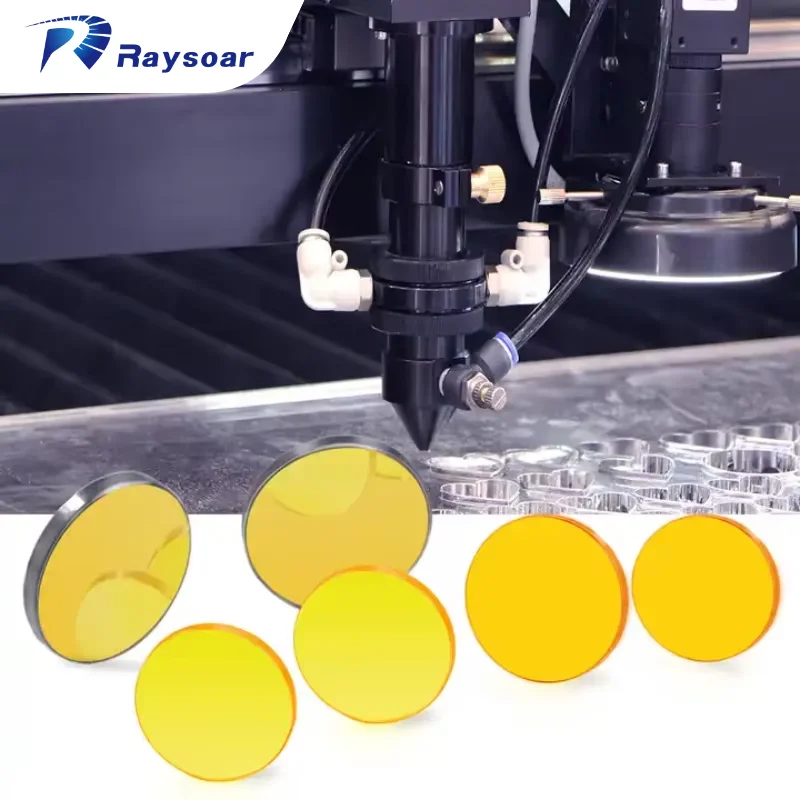

Prodcut Name: CO2 Focusing Lens

Type: Lens Men 1.5"Dia/5.0"FL/0.29“ET

Lens Men 1.5"Dia/7.5"FL/0.29”ET

Application: used for Trumpf CO2 Laser Cutting Machine

Product Description

Product Name	CO2 Laser Cutting Focus Lens
Comparable with OEM	for Trumpf
Machine Model Suitable	Trumatic L3030 / L3050 / L4030 / 6000L
OEM Ref.No.	088114 097517
Lens Material	ZnSe Laser Grade
Diameter	1.5"/38.1mm
Edge Thickness	0.290"/7.37mm
Focal Length	5"(127mm)/7.5"(190.5mm)
Guaranteed Absorption	<0.15%
All original equipment manufacturer's names, drawings, colors, trademarks and part numbers are used for identification purposes only and we are in no way implying that any of our products are original equipment parts except for those original parts we indicated individually.

Technical Specifications

Effective Focal Length (EFL) Tolerance	+1%
Dimensional Tolerance	+0/-.004"
Thickness	±0.002"
Edge Thickness Variation (ETV)	<=0.0002" TENTHS
Clear Aperture (polished)	90%
Surface Figure at 0.63pm	A/5@ 632.8pm
Scratch-Dig	<=20-10
AR Coating Reflectivity per Surface at 10.6pm	<0.1%
