Type：FRP05
Features：Dynamic response, precise control, repeatability, maximizing economic utility.
Application：Laser Cutting Machine Oxygen Pressure Regulation
Laser cutting is a key application of the FRP05 pressure regulation valve. Laser cutting typically uses low-pressure oxygen to pierce metal,
followed by high-pressure nitrogen to achieve clean cuts. The function of the pressure regulation valve is to proportionally control the flow of cutting gases.
| Medium | Compressed air/Inert gas | Medium Temperature | 0~60℃ | Ambient Temperature | 0~60℃ | Operating Voltage | DC24V |
| Inlet Port | G1/4 | Outlet Port | G1/4 | Exhaust Port | G1/4 | Protection Rating(IP Rating) |
IP65 |
| Diameter | 5mm | Control Mode | Analog0-10V | Power Consumption | max.32W | Flow Rate | 1000 L/min |
| Max Operating Pressure | 11bar | Pressure Adjustment Range |
0-10bar | Pressure Fluctuation | 5% | Repeatability | 1% |

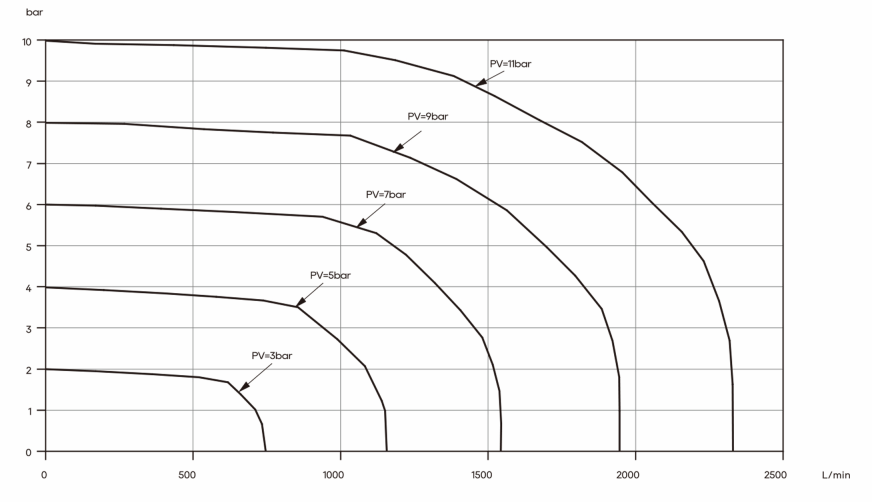

Flow Rate Curve

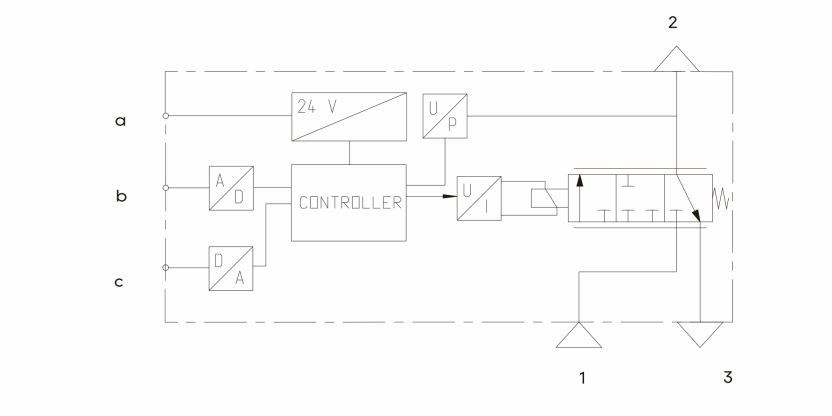

Functional Diagram
