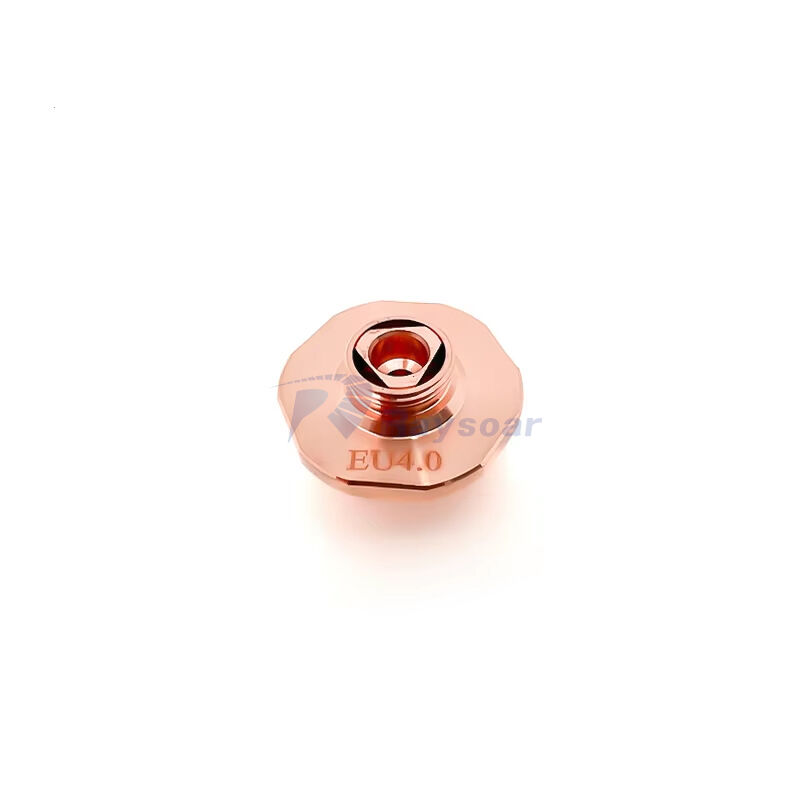

Raysoar Laser ECU Nozzle D28 M11H15 Double Layer Chrome Plated Laser Cutting Nozzle for Precitec HSG Laser Cutting Head

Raysoar Laser ECU Nozzle D28 M11H15 Double Layer Chrome Plated Laser Cutting Nozzle for Precitec HSG Laser Cutting Head

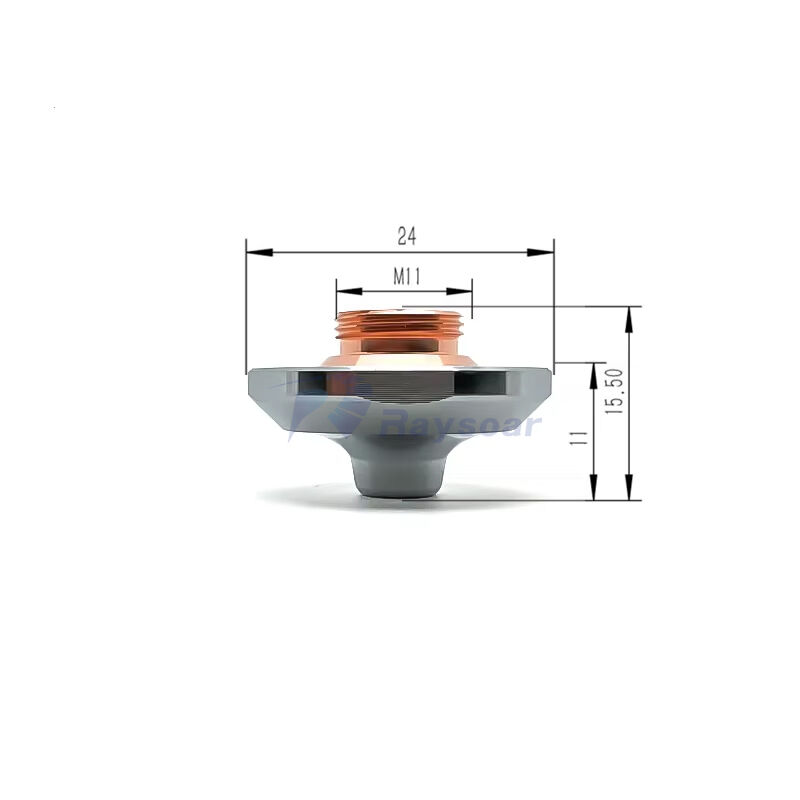

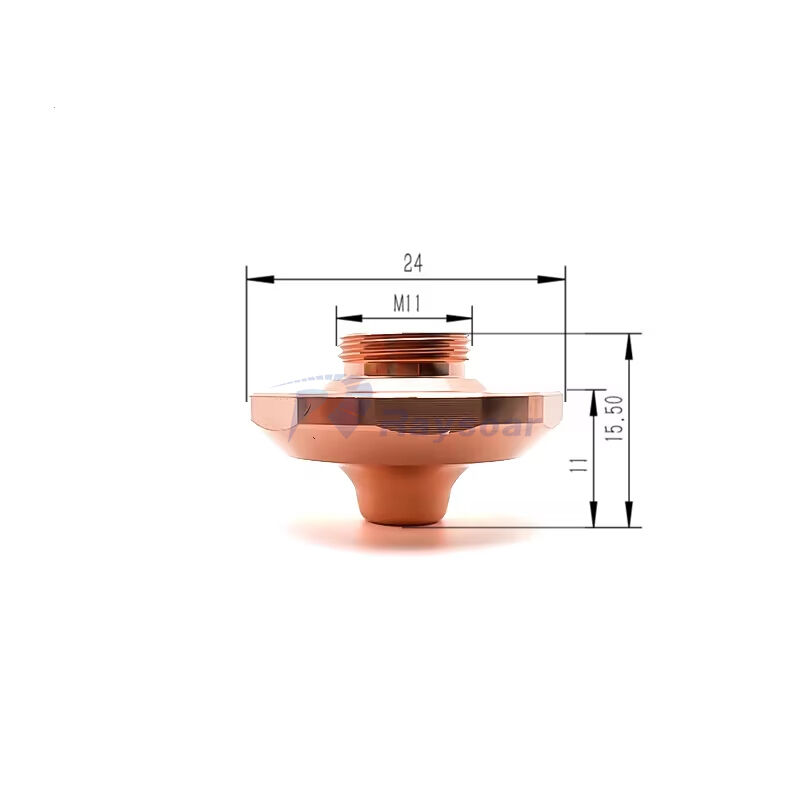

Product Type: Double Nozzle D28 M11 H15mm

Raysoar P/N: LHGN02-59XX/LHGN02-59XXCP

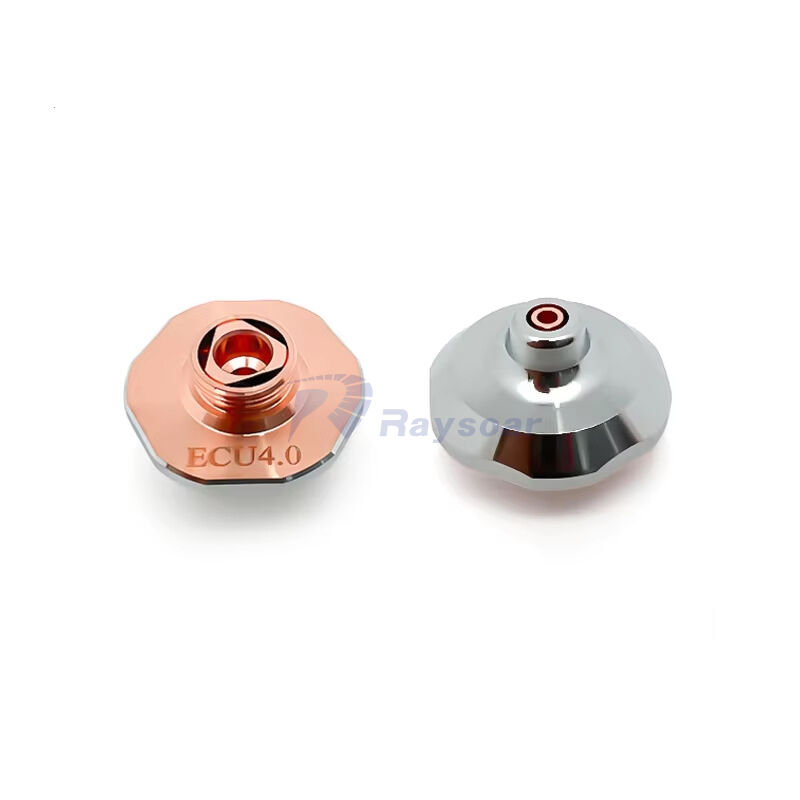

Chrome Plated Coating：Available

Caliber Available：2.0，2.5，3.0，4.0，5.0，6.0，8.0，10.0mm

Application: Cutting for Stainless Steel/Aluminum Alloy by Nitrogen

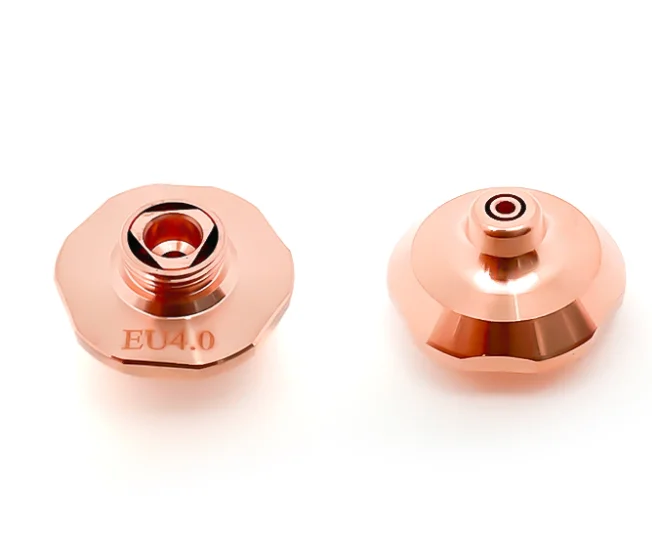

Product Overview

product raysoar laser ecu nozzle d28 m11h15 double layer chrome plated laser cutting nozzle for precitec hsg laser cutting head-8

Product Features

●Strict selection of premium copper material, good heat dissipation

●Good thermostability and Slag Resistance ●High Machining Accuracy ●Fast Cutting Speed ●Long Service Life

product raysoar laser ecu nozzle d28 m11h15 double layer chrome plated laser cutting nozzle for precitec hsg laser cutting head-9

Quality Guaranty From Professional Inspection Instruments

product raysoar laser ecu nozzle d28 m11h15 double layer chrome plated laser cutting nozzle for precitec hsg laser cutting head-10

Continuous Technology Innovation Enhanced Productivity

HD Series Nozzles-100% Longer LIfespan

Base material: Copper Alloy Concentricity: 0.03~0.05mm

product raysoar laser ecu nozzle d28 m11h15 double layer chrome plated laser cutting nozzle for precitec hsg laser cutting head-11

Mechanical Properties	Copper Alloy	T2 Copper	T3 Copper
Tensile Strength	350 - 380 MPa	195 - 220 MPa	200 - 240 MPa
Yield Strength	330 - 370 MPa	60 - 80 MPa	65 - 85 MPa
Vickers Hardness	100 - 110 HV	40 - 50 HV	45 - 55 HV

Item	HD Series	Ordinary T2/T3 Products
Material	Alloy copper substrate, hardness increased by 100%, wear-resistant and not easily deformed	T2/T3 copper is soft, nozzle tip wears easily
Surface Treatment	Hard chrome plating, significantly improves surface hardness and wear resistance	Provides only slight surface protection
Concentricity	High concentricity, ensures cutting quality	Low concentricity, poor cutting performance
After-sales Service	Professional guidance, ensures user experience	After-sales quality varies

When to Replace Your Nozzle?

●Slags caused during cutting blocked up the nozzle. ●Heating caused the distortion of the nozzle. ●Severe Collision caused the damage to the tip surface. ●Heating caused the drop of the nozzle core.

product raysoar laser ecu nozzle d28 m11h15 double layer chrome plated laser cutting nozzle for precitec hsg laser cutting head-12

Installation and Maintenance

product raysoar laser ecu nozzle d28 m11h15 double layer chrome plated laser cutting nozzle for precitec hsg laser cutting head-13

Replacement of nozzle

1. Unscrew the nozzle; 2.Replace the new nozzle and retighten it with proper force. 3.The recalibration is necessary after each time of replacement of the ceramic holder or nozzle.
