Medium Flow Integrated Valve Manifold for Laser Cutting Machine

Medium Flow Integrated Valve Manifold for Laser Cutting Machine

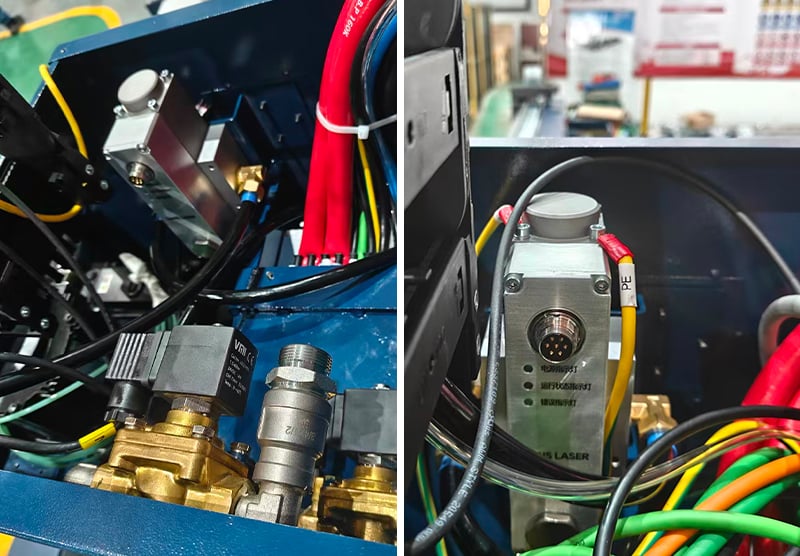

Product Name: Medium Flow Integrated Valve Manifold

Type: FRI07, FRI07P3

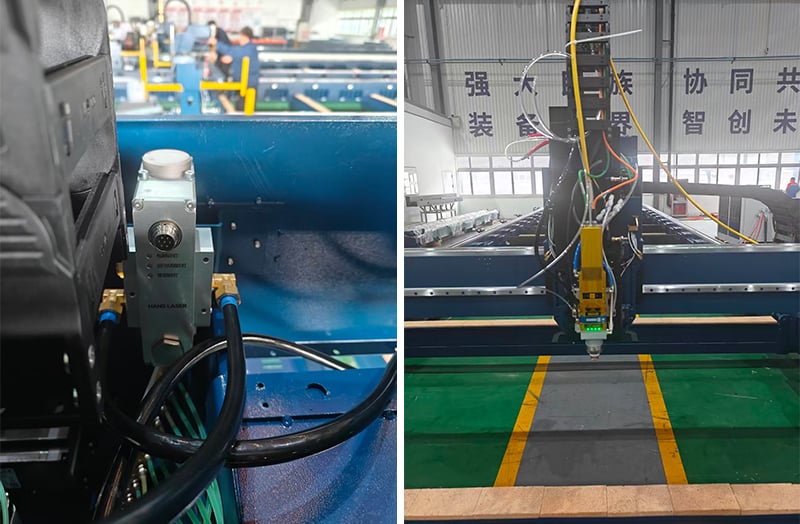

Application: Laser Cutting Machine

Medium: Compressed air/Inert gas

Direct-Acting Solenoid Valve Max Pressure：30Bar

Medium Flow Integrated Valve Manifold FRI07

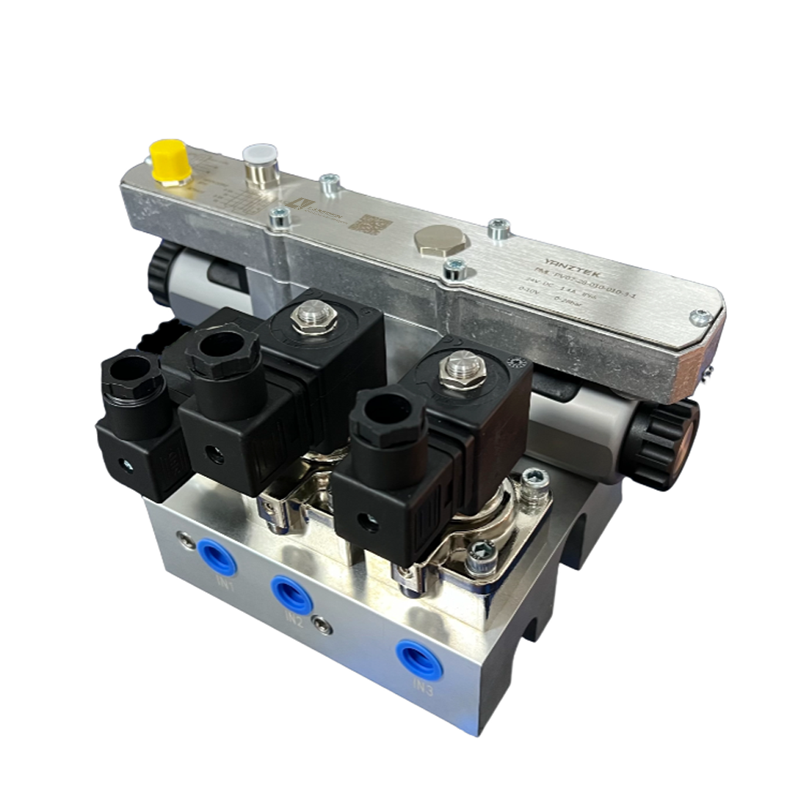

Three Way Integrated Valve Manifold FRI07P3

Technical Data

Medium	Compressed air/Inert gas	Medium Temperature	0-60℃	Ambient Temperature	0-60℃	Operating Voltage	DC24V
Inlet Port	G3/8	Air Outlet/Outlet Port	G3/8	Exhaust Port	G3/8	Protection Rating(IP Rating)	IP65
Proportional Valve Diameter	7mm	Control Mode	Analog0-10V	Power Consumption	max.32W	Max Operating Pressure	29bar
Max Operating Pressure	0-28bar	Pressure Fluctuation	5%	Repeatability	1%	Direct-Acting Solenoid Valve Diameter	3mm
Direct-Acting Solenoid Valve Power	18w	Direct-Acting Solenoid Valve Max Pressure	30bar	Pilot Solenoid Valve Diameter	10mm	Pilot Solenoid Valve Power	18w
Pilot Solenoid Valve Max Pressure	30bar	Check Valve Diameter	7.2mm	Check Valve Max Pressure	30bar

Functional Diagram for FRI07P

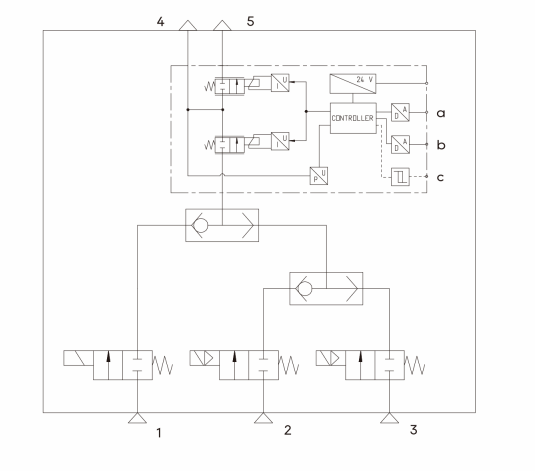

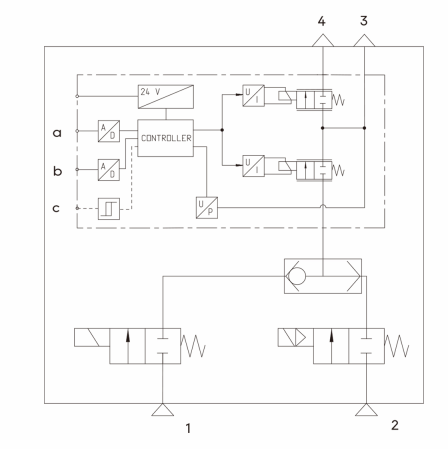

Functional Diagram for FRI07P3
