* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* All-in-one design
* Lightweight
* Movable
* Space-saving
* Easy to carry
* User-friendly
* Applicable to various application scenarios
| MODEL | CWFL-1500ANW | CWFL-2000ANW | CWFL-3000ENW | |||
| CWFL-1500ANW16 | CWFL-1500BNW16 | CWFL-2000ANW16 | CWFL-2000BNW16 | CWFL-3000ENW12 | CWFL-3000FNW12 | |
| Voltage | AC 1P 220 - 240V | AC 1P 220 - 240V | AC 3P 380V | |||
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz |
| Current | 1.2 - 10.1A | 1.2 - 9.2A | 1.5 - 10.1A | 1.5 - 9.6A | 2.3 - 17.2A | 2.3 - 18.2A |
| Max. power consumption | 2.18kW | 2.08kW | 2.16kW | 2.11kW | 3.68kW | 4.98kW |
| Compressor power | 1.28kW | 1.17kW | 1.2kW | 1.1kW | 1.8kW | 2.01kW |
| 1.75HP | 1.59HP | 1.63HP | 1.58HP | 2.41HP | 2.69HP | |
| Refrigerant | R-410A | R-32 | R-32 | |||
| Precision | ±1℃ | ±1℃ | ±1℃ | |||
| Reducer | Capillary | Capillary | Capillary | |||
| Pump power | 0.26kW | 0.32kW | 0.48kW | |||
| Tank capacity | 10L | 10L | 16L | |||
| Inlet and outlet |
Φ6+Φ12 Φ6+Φ12 Fast connector |
Φ6+Φ12 Φ6+Φ12 Fast connector |
Φ6 +Φ20 Φ6 Fast connector+Φ20 Barbed connector |
|||
| Max. pump pressure | 30M | 40M | 43M | |||
| Rated flow | 1.5L/min->15L/min | 1.5L/min->15L/min | 2L/min->20L/min | |||
| N.W. | 50Kg | 50Kg | 94Kg | |||
| G.W. | 61Kg | 61Kg | 114Kg | |||
| Dimension | 90 X 40 X 72cm (L X W X H) | 90 X 40 X 72cm (L X W X H) | 112 X 53 X 96cm (L X W X H) | |||
| Package dimension | 101 X 48 X 92cm (L X W X H) | 101 X 48 X 92cm (L X W X H) | 120 X 60 X 109cm (L X W X H) | |||
| Note: The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product. | ||||||
Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

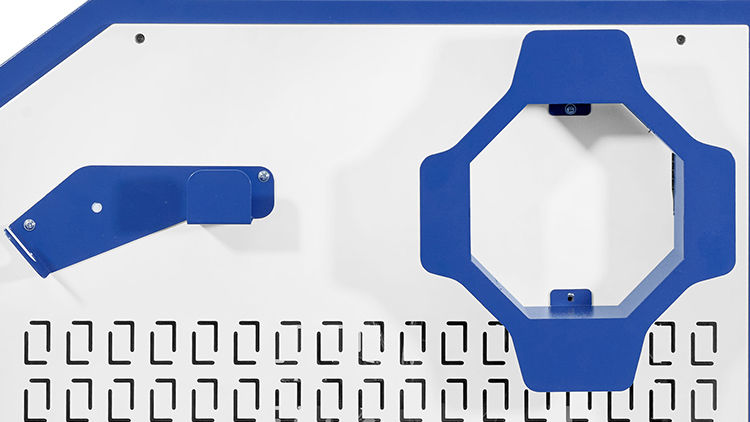

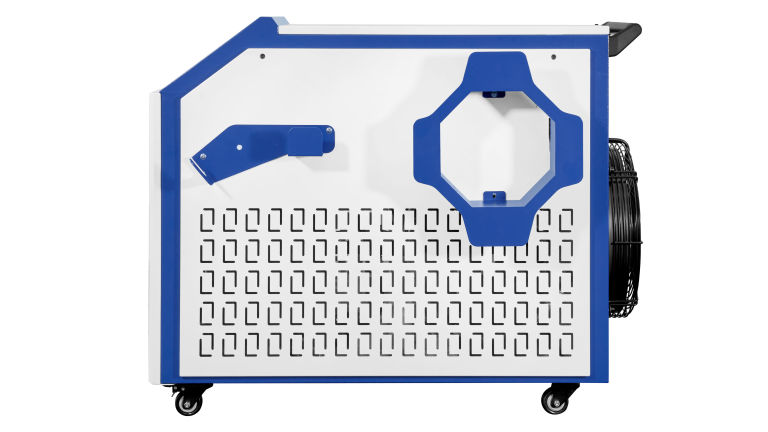

Laser Gun Holder & Cable Holder
TEasy to place the laser gun and cables, saving space, easy and portable, and can easily be carried to the processing site in various application scenarios.

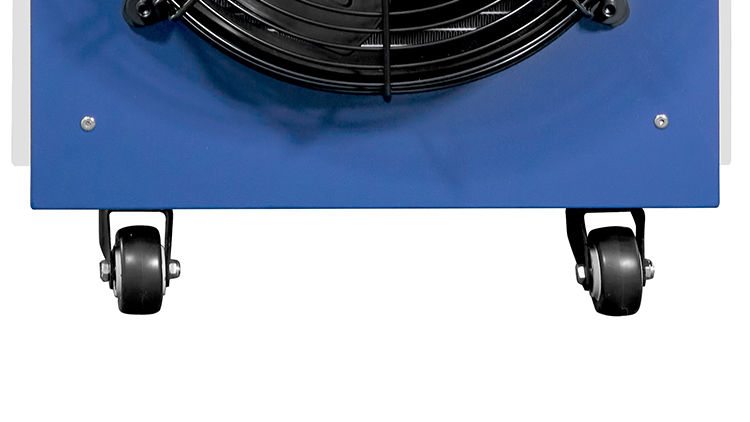

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
