Large Diameter Fiber Polarizing Fusion Splicer

Type: S500P1/SH-51PMFA/SH-51PMFB

Applicable Fiber: Polarization-maintaining fiber(PMF):panda type,bowtie type,elliptic type，SMF(G.652)、MMF(G.651)、DSF(G.653)、NZDSF(G.655)、BIF(G.657)

Product Features:

S500P1

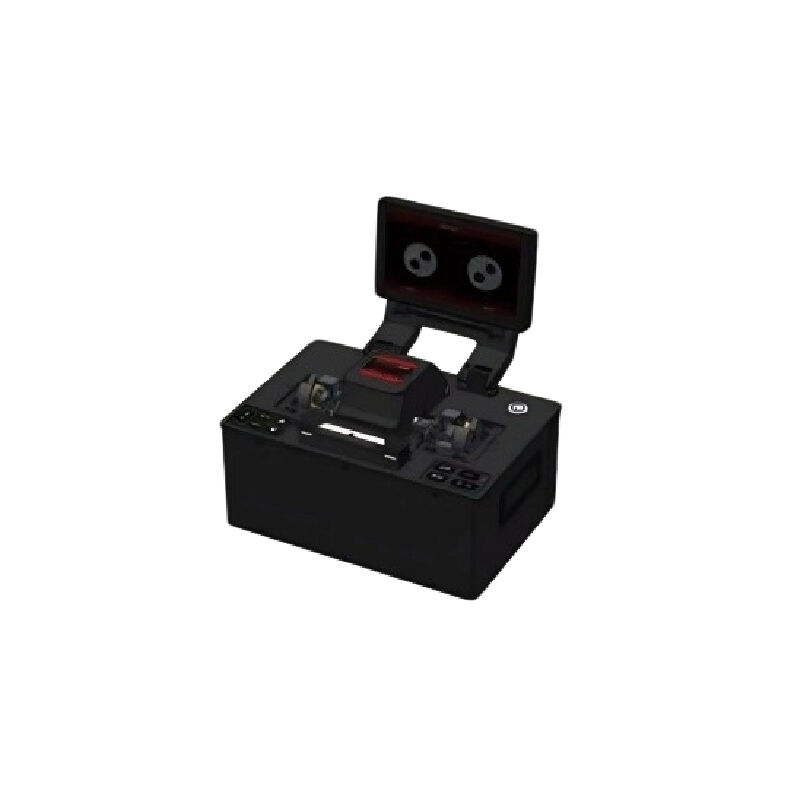

SH-51PMF

An innovative end-face imaging system that provides clear visibility of both fiber end faces, enabling precise core alignment;
Adjustable arc position with real-time calibration of arc size;
Upgradeable software with data storage and export capabilities;
Pause function for convenient scientific research and teaching purposes;
Compatible with various coating types (colored, opaque, 900μm jacket) of optical fibers;
Designed for polarization-maintaining devices requiring short pigtails.

Product Specifications:

Model	S500P1	SH-51PMFA	SH-51PMFB
Applicable Fiber	Polarization-maintaining fiber(PMF):panda type,bowtie type,elliptic type，SMF(G.652)、MMF(G.651)、DSF(G.653)、NZDSF(G.655)、BIF(G.657)
Fiber Diameter	125~500μm	60-150μm	125-250μm
Coating Diameter	300μm~650μm	100μm～900μm	165μm～900μm
Face Magnification	200 times
Cut Length	12mm	5.5～16mm
Typical Fusion Time	15s	90s
Extinction Ratio	-30dB	-38dB
Average Fusion Loss	0.02dB(SMF),0.01dB(MMF),0.05dB(PSF,NFD,BIF,PMF)
RL(return loss)	≥60dB
Axial Mode	0°、45°、90°
Axial Alignment Method	End face(manual)	End Face/Side Face(Manual/Automatic）
Automatic Discharge Calibration	Available
Electrode Life	Discharge 5000 times
Fusion Programs	9 groups of factory preset programs,N groups of user-defined programs	80 sets of programs, 15 sets of factory preset programs
Data Storage	10000 groups data records and 200 group images and fusion process	Capable of storing 10,000 fusion splice logs and 30,000 images.
Linguistic Display	English,multi-language optional
Operating Condition	Temperature:-25C--+50℃;Humidity:<95%(Noncondensing); Altitude:0-5000m,Wind:max,15m/s
Storage Environment	Temperature:-40~+80℃,Humidity:0~95%RH(no condensation)
Power Supply	AC adapter,inputAC85-260V(50/60HZ), Battery capacity:6.5Ah Li-battery,12V
Display Dimension		7-inch color high-resolution LCD screen
Product Dimension/Weight		296(D)×200(W)×194(H)mm/6kg
