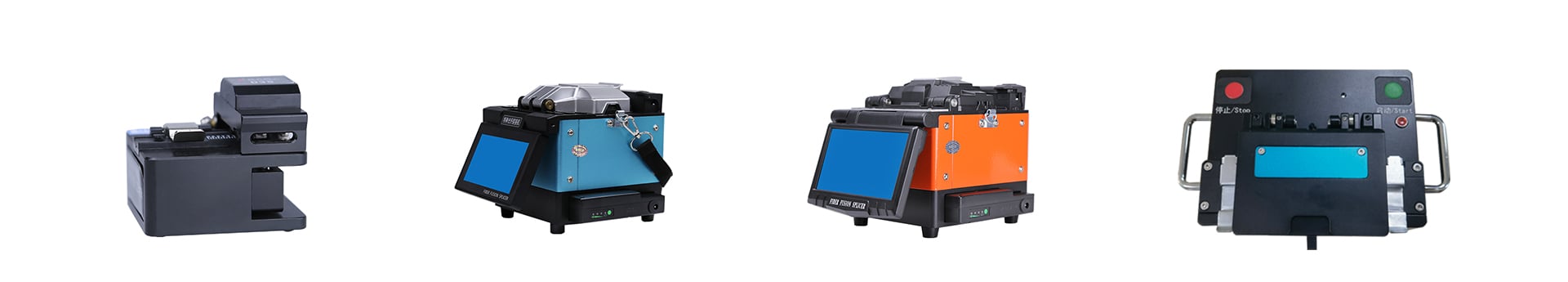

Large Diameter Fiber Fusion Splicer

Type: S200LDF/S400LDF/S500M

Applicable Fiber: SM/MM/DS/NDZS

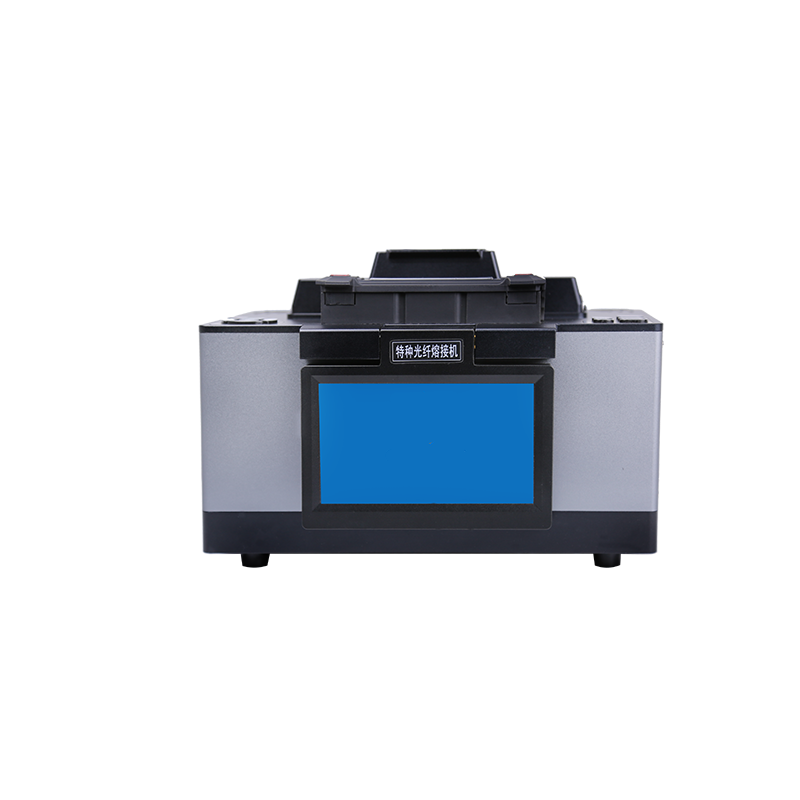

S200LDF

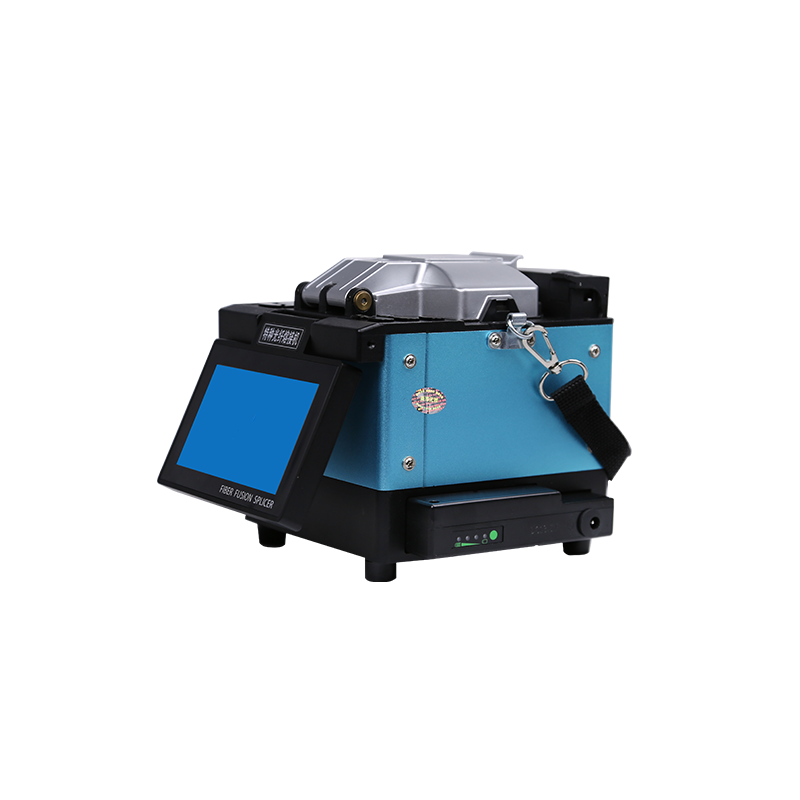

S400LDF

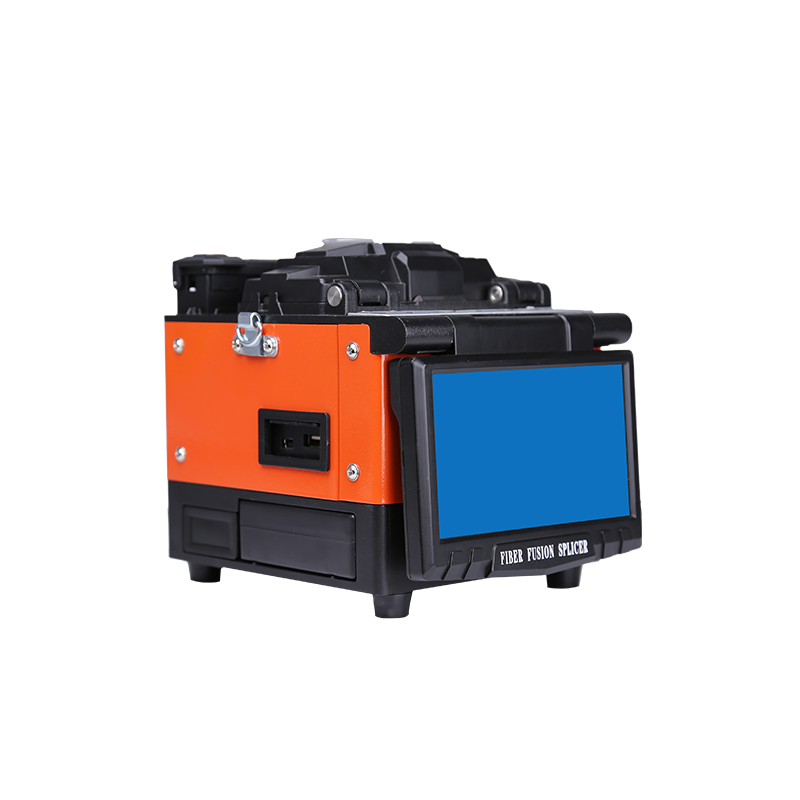

S500M

Product Features

Manual correction and real-time arc automatic correction options available
High-power dual lighting design for convenient nighttime operations
12V power interface with adapter for direct power supply
Discharge arc real-time compensation based on air pressure, environment, and temperature parameters

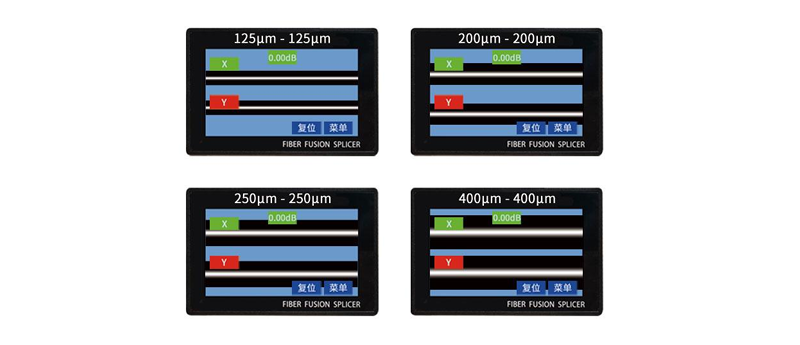

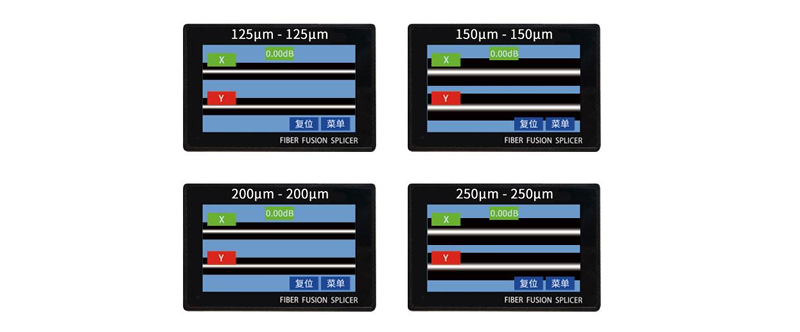

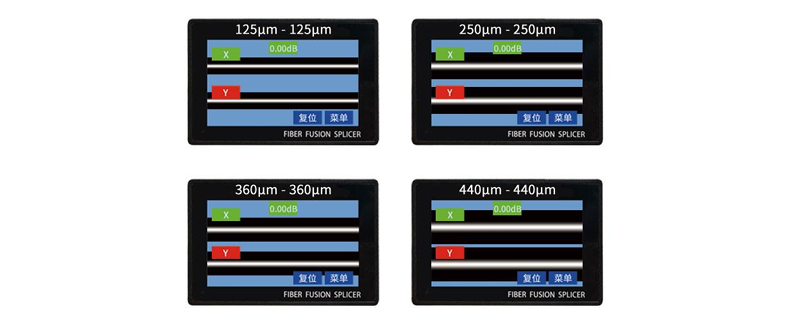

Dual-camera system for simultaneous X-axis and Y-axis observation to achieve fiber alignment
5-inch touchscreen LED color display with customizable multilingual modes
Equipped with two USB ports: one for data transmission and one for external construction lighting

Product Specifications

Model	S200LDF	S400LDF	S500M
Weight	1.95KG(including battery)	2.4KG(including battery)	0.312KG(including battery)
Typical heat time	≤30s(60mm)	20s(60mm)	≤30s(60mm)
Typical splice time	≤9s	8~10s	≤9s
Fiber diameter	Cladding diameter:125~250μm	Cladding diameter:125~500μm	Cladding diameter:125~500μm
Heat-shrink tube	60/40mm and other miniature tube
Electrode life	Typical 3000 times discharge
Data storage	10000 groups data records and 200 group images
Return loss	>60dB
Applicable fiber	SM;MM;DS;NDZS
Tension test	Typical 2N
Typical splice loss	0.02dB(SM);0.01dB(MM);0.04dB(DS);0.04dB(NZDS)
Cutting length	8~16mm(Coating diameter≤250μm);16mm(Coating diameter 250~1000μm)
Fiber magnification	X or Ysingle fiber image:300X,XandY double image 150X
Operatingcondition	Temperature:-10C-+50℃;Humidity:<95%;Altitude:0-5000m,Wind:max,15m/s
Power supply	AC adapter,inputAC100-240V(50/60HZ),output:DC13.5V/4.5A;Battery capacity:5200mAh Li-battery,11.1V
