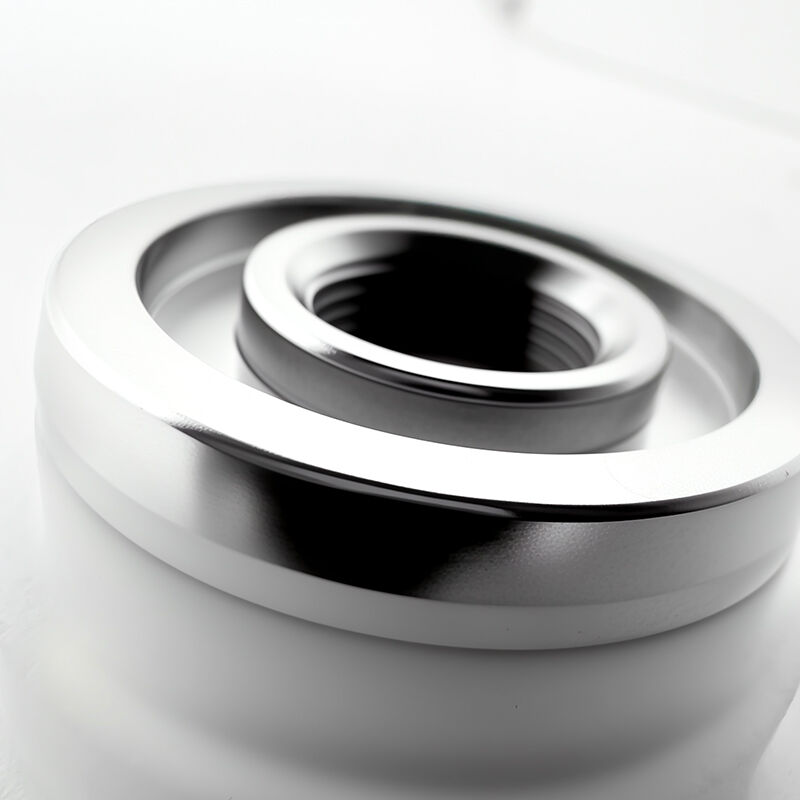

Advanced Laser Ceramic Processing for Industry

Advanced Laser Ceramic Processing for Industry

Raysoar provides comprehensive Laser Ceramic services, including cutting, drilling, and marking. We achieve exceptional accuracy on materials like Alumina and Zirconia with minimal thermal impact. The non-contact process ensures superior edge quality and part integrity for semiconductor, medical, and aerospace applications. We help you realize complex designs, accelerate prototyping, and scale production reliably.
Get A Quote

Case Studies

Laser-Marked Surgical Ceramic Blades for Permanent Traceability

A medical device company needed a reliable method to apply unique, permanent identification codes onto Zirconia ceramic blades for surgical tools. The marks had to be high-contrast, durable against repeated sterilization cycles, and applied without creating any surface flaws that could act as stress concentrators. We developed a low-power laser marking process that created a deep, permanent anneal mark on the ceramic surface. This method did not ablate material or alter the surface topography, ensuring the blade's cutting performance and sterility were unaffected. This case demonstrates a critical application of Laser Ceramic technology for meeting medical industry traceability standards (UDI).

Laser-Drilled Ceramic Feedthroughs for Ultra-High Vacuum Systems

A manufacturer of scientific instruments required custom Alumina ceramic feedthroughs with multiple micro-sized holes for electrical connections in a UHV chamber. The challenge was achieving perfectly round, debris-free holes without compromising the part's vacuum integrity. Our Laser Ceramic drilling expertise enabled us to create these micro-vias with diameters as small as 50µm, with smooth walls and no micro-cracking. The precision of the laser process ensured exact alignment and hermeticity, which was verified by the client's stringent leak testing. This project highlights our ability to meet the extreme precision requirements of scientific and research equipment manufacturers.

Complex-Shaped Ceramic Nozzles for Additive Manufacturing Systems

An industrial 3D printer manufacturer needed a complex, wear-resistant ceramic nozzle for a new metal powder deposition system. The internal channels required a specific geometry to optimize powder flow. Using our multi-axis Laser Ceramic machining capabilities, we were able to shape a Silicon Nitride blank into the final component with the required internal contours. The laser's ability to follow complex 3D paths allowed us to achieve a design that was impossible with conventional grinding. The result was a nozzle that provided superior wear resistance and consistent performance, extending maintenance intervals for the client's equipment.

Related products

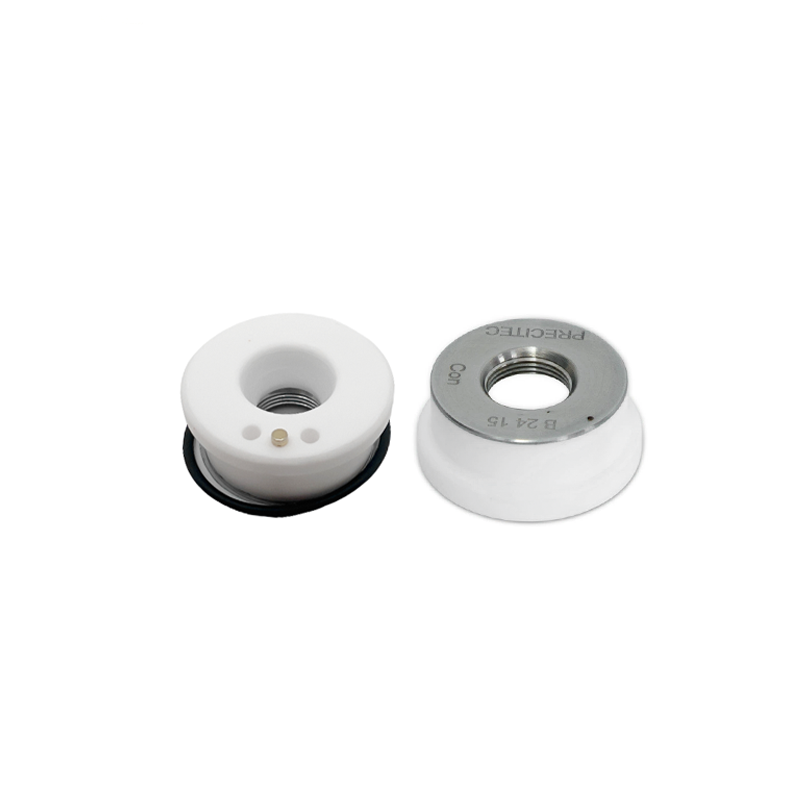

BOCI Fiber Laser Ceramic Nozzle Holder For BOCI Laser Cutting Head VIEW DETAILS

BOCI Fiber Laser Ceramic Nozzle Holder For BOCI Laser Cutting Head

Ceramic Nozzle Holder for BOCI/BOCHU Laser Cutting Head VIEW DETAILS

Ceramic Nozzle Holder for BOCI/BOCHU Laser Cutting Head

Ceramic Nozzle Holder for OSPRI Laser Cutting Head VIEW DETAILS

Ceramic Nozzle Holder for OSPRI Laser Cutting Head

Ceramic Nozzle Holder for OSPRI Laser Cutting Head 3D VIEW DETAILS

Ceramic Nozzle Holder for OSPRI Laser Cutting Head 3D

Raysoar Laser combines material sciences with advanced laser technology, and is processing advanced ceramics for the first time. “Laser Ceramic” covers a suite of subtractive and surface modification processes for ceramics, such as cutting, drilling, welding, and marking. Every laser fabrication process has a different energy delivery challenge, and we master energy delivery through cutting edge laser technology. Ceramics are regarded as hard and brittle. Unlike traditional machining, laser technology is a non-contact process. We are problem solvers at the core. We don’t take CAD files and machine off them; we design machine processes. We determine the appropriate laser, be it a fiber or a picosecond, adjust setting like pulse width and repetition rate, and fabricate custom fixturing. These processes have allowed us to understand a wide range of engineering ceramics. Engineering ceramics have different machining strategies. For example, high-purity Alumina is processed for electrical insulation as opposed to tougher Zirconia, which is processed differently for machining. We are after the geometric freedom to design superior products for our clients and unlock the ultimate potential of Laser Ceramic components.

Common problem

Which ceramics are best for laser processing?

Most advanced ceramics like Alumina (insulation), Zirconia (toughness), and Silicon Nitride (thermal shock) are well-suited. We advise on the optimal material based on your application's thermal, mechanical, and electrical requirements.
We typically hold tolerances of ±0.025 mm or better, depending on geometry and material. We work with you during design review to establish achievable tolerances for performance and manufacturability.

Related article

Exploring Industrial Laser Applications of Nitrogen Generators

12

Jun

Exploring Industrial Laser Applications of Nitrogen Generators

Explore the role of nitrogen in industrial laser cutting, highlighting its impact on preventing oxidation, enhancing precision, and improving cost efficiency through on-site generation. Learn about sizing systems and PSA vs. membrane technology.
View More
Key Considerations for Selecting Fiber Laser Sources in Manufacturing

02

Jul

Key Considerations for Selecting Fiber Laser Sources in Manufacturing

Discover the benefits of fiber laser sources in manufacturing, exploring components, advantages, and applications. Learn about material compatibility, power requirements, and precision capabilities essential for industrial tasks.
View More
How to retrofit old laser cutting machines effectively?

25

Jul

How to retrofit old laser cutting machines effectively?

Struggling with outdated laser cutting machines? Discover how retrofitting with Raysoar’s 4-in-1 sets improves speed, precision, and efficiency by up to 50%. Learn cost-saving upgrades, FDA-compliant installation, and maintenance tips. Get your retrofit checklist now.
View More
How does a selection valve work in laser cutting?

28

Oct

How does a selection valve work in laser cutting?

Discover how selection valves regulate assist gases in laser cutting for precision, efficiency, and clean cuts. Learn about gas switching, flow control, and automation. Optimize your cutting process today.
View More

Customer Reviews

Sarah

Their expertise in laser machining was key to creating a complex ceramic insulator with unique cooling channels. A valuable innovation partner.

Kenji Tanaka

The laser-machined ceramic wafer chucks from Raysoar meet the strict flatness and tolerance needs of our etching systems. A reliable partner for R&D and production.

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000
laser ceramic laser cut ceramic laser ceramic ring fiber laser ceramic fiber laser ceramic ring

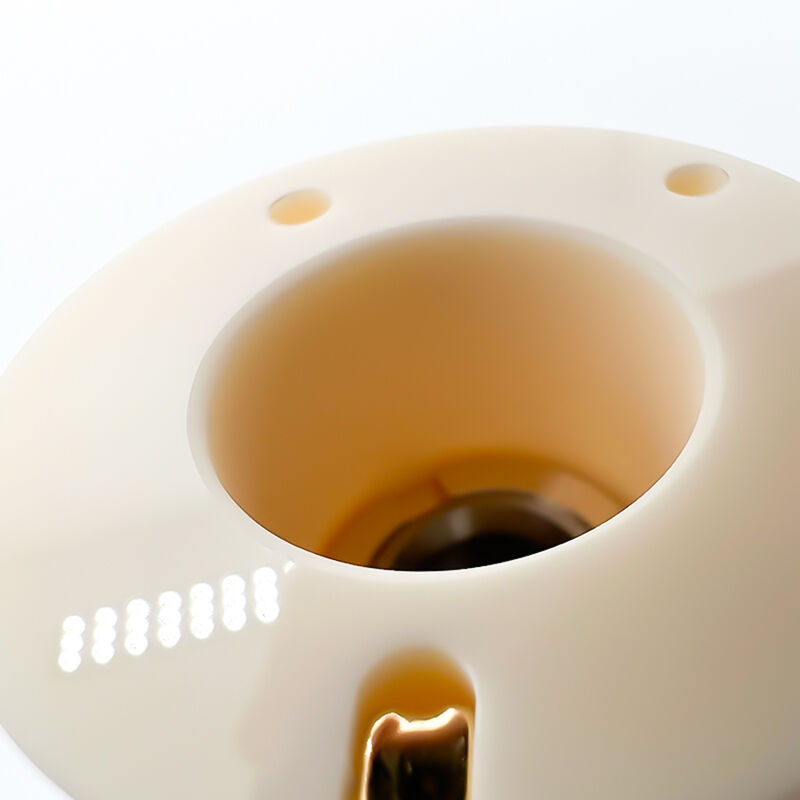

Multi-Axis Machining for 3D Geometries

Multi-Axis Machining for 3D Geometries

Our multi-axis laser machining capability allows us to process ceramics in 3D, creating complex features, undercuts, and contoured surfaces. This eliminates multiple setups and enables innovative component designs with internal functionalities, providing significant design freedom for clients in advanced R&D and aerospace.
Material Science-Driven Process Development

Material Science-Driven Process Development

We integrate material science with laser engineering. We analyze the specific ceramic's properties to tailor laser parameters, enabling us to work with challenging materials and develop specialized processes like ceramic-to-metal welding. This scientific approach ensures optimized, innovative manufacturing solutions for unique applications.
