Customer Case Study- Fine Cutting Series FCP60P

Customer: Locomotive Components Manufacturer

Location: Hunan, China

Location:Jiangsu Province, China

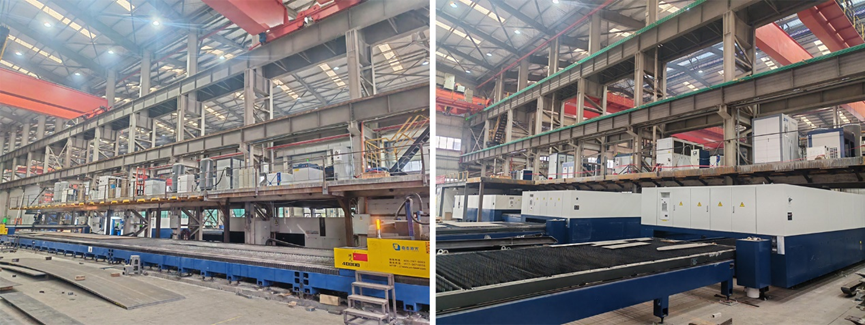

Manufacture Equipment：40KW laser cutting machine             1 unit

                                                  60KW laser cutting machine            1 unit

                                                  6KW laser cutting machine              1 unit

                                                  12KW laser cutting machine             1 unit

                                                   20KW laser cutting machine            1 unit

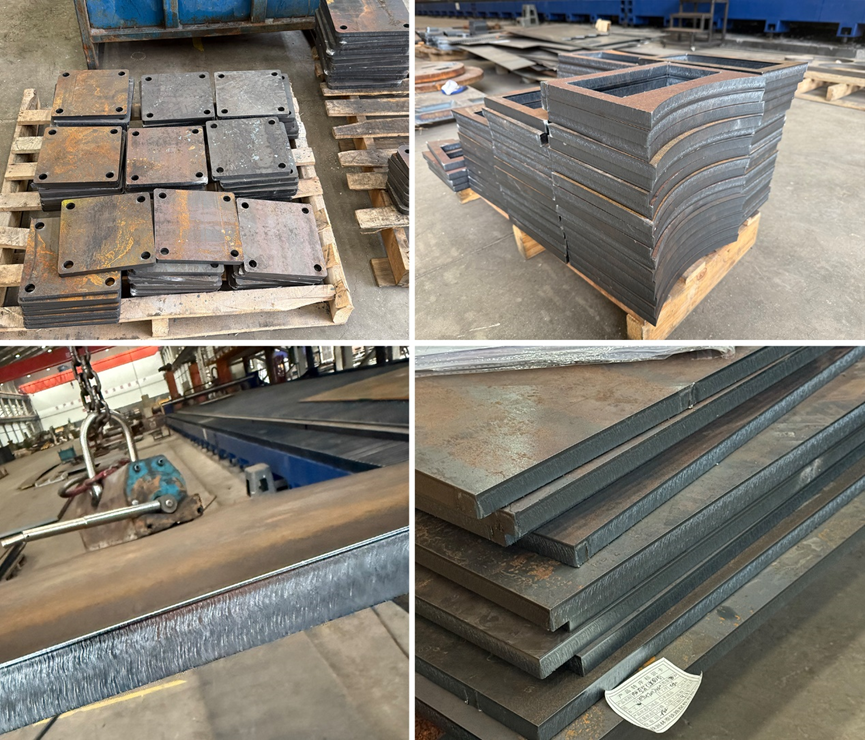

Cutting Work：8-25MM carbon steel

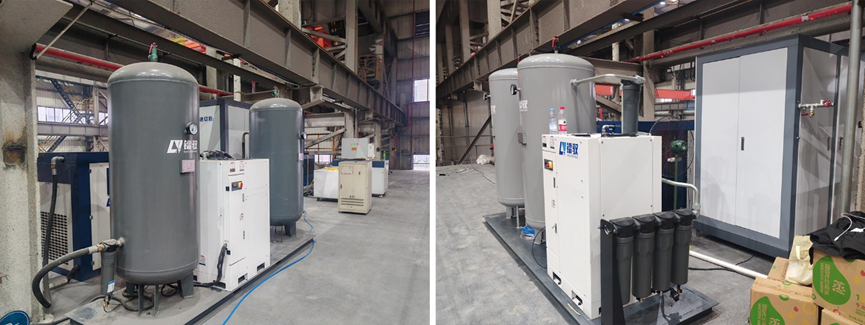

Gas Supply Solution : 2units of FCP (150Nm³/h Mix-gas production on site)

Before the Investment:

With multiple laser machines of different power levels, the customer required high stability and adaptability of assist gas.

Traditional gas supply could not fully meet the needs of various thicknesses and power settings, leading to unstable cutting quality, oxidation on cut surfaces, slag adhesion, and higher gas costs.

After the Investment:

After installing the FCP Fine Cutting Series mixed-gas system, cutting quality improved significantly.
Cut surfaces became cleaner, oxidation and slag were greatly reduced, and cutting speed and stability increased.
The system provides precise N₂–O₂ ratios based on laser power and material thickness, delivering a stable, efficient, and economical gas solution for multi-machine, high-power, and full-thickness cutting.

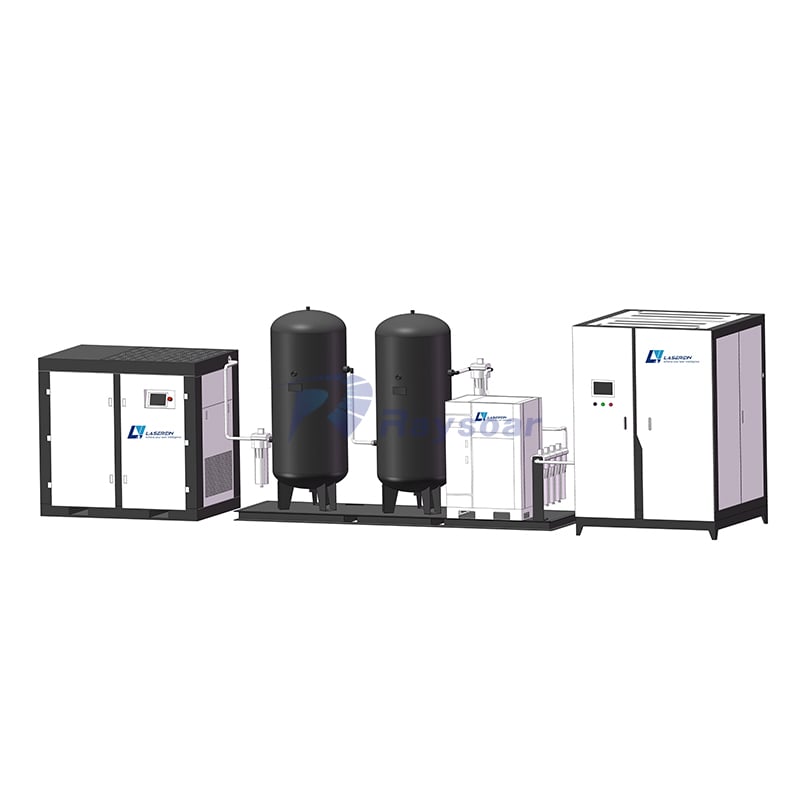

FCP Series Products Introduction:

Mixed gas cutting employs a specific ratio of nitrogen-oxygen mixture as the laser assist cutting gas, leveraging the advantages of

each component gas (nitrogen for high-speed cutting and oxygen for burr-free cutting) by combining them into a single cutting stream.

This method enables rapid cutting with minimal burrs, significantly improving the cutting quality for medium-to-thick low-carbon steel

and aluminum alloys while achieving higher cutting speeds than pure nitrogen. The burring issues encountered when using pure

nitrogen or air cutting a are minimized or eliminated.

Advantages of Mix-Gas Cutting：

● Improves cutting quality of ordinary steel, reducing burrs to <3% of material thickness.

● Higher surface finish compared to air cutting.

● Significantly increases cutting speed compared to oxygen cutting of high-power medium-thick carbon steel plates.

● Offers a cost advantage compared to liquid nitrogen cutting.

Fine Cutting VS Air Cutting vs O2 Cutting

Application

● Heavy cutting work for carbon steel (replacing the air cutting or liquid nitrogen cutting)

● Burr-free cutting of aluminum ally.

Products Features:

● Compared to liquid nitrogen and liquid oxygen dual-gas mixing systems, it achieves up to 70% savings, delivers rapid returns, with

   an average ROI payback period of 12-18 months.

● Easy maintenance, with a system lifespan of 6-8 years requiring regular maintenance.

● LOT-enabled functionality, featuring exclusive SMART-REIN for remote monitoring via mobile devices.It intelligently selects

   operational modes based on factory conditions to optimize energy consumption.

● Equipment interconnectivity and collaboration capabilities, enabling coordinated control with machine tools equipped with the BOCHU

   system customizable functions.

FCP Technical Specifications
