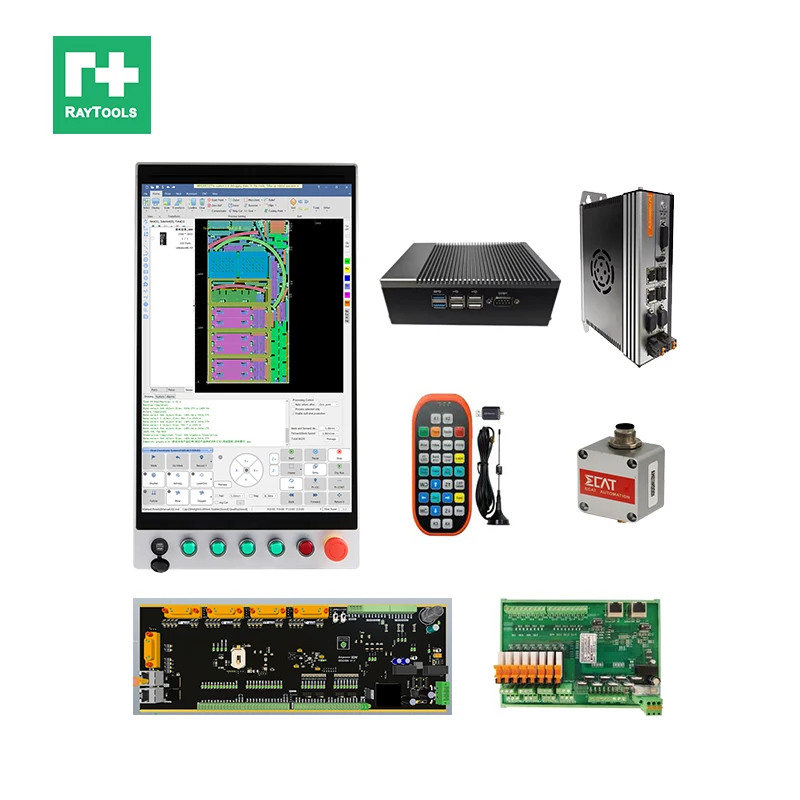

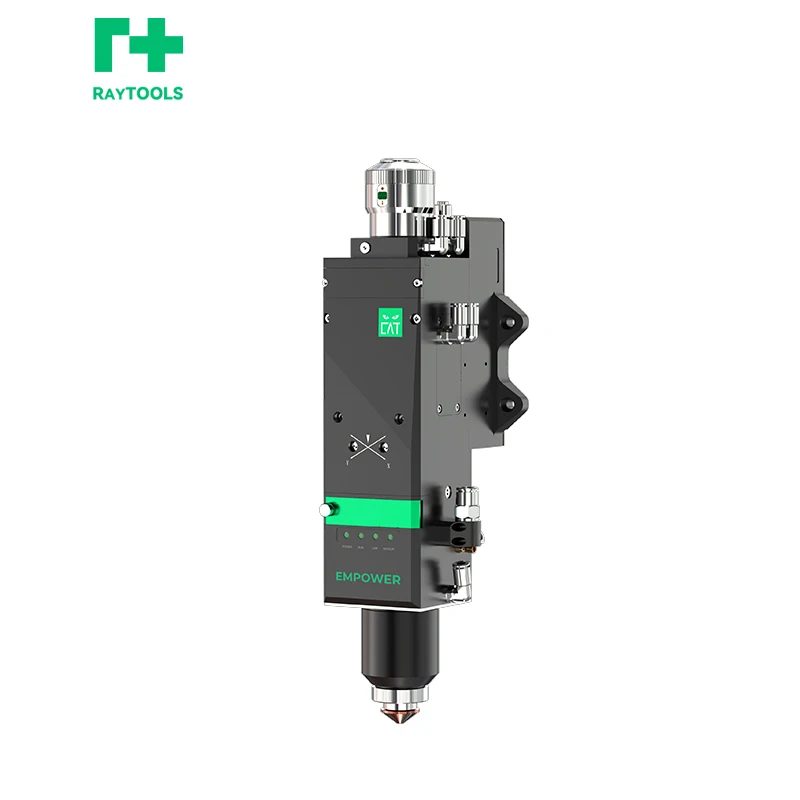

2in1 Kit Raytools BS06K-CAT Laser Head XC3000PLUS Controller Fiber Laser Cutting Parts Kit for 6KW Fiber Laser Cutting Machine

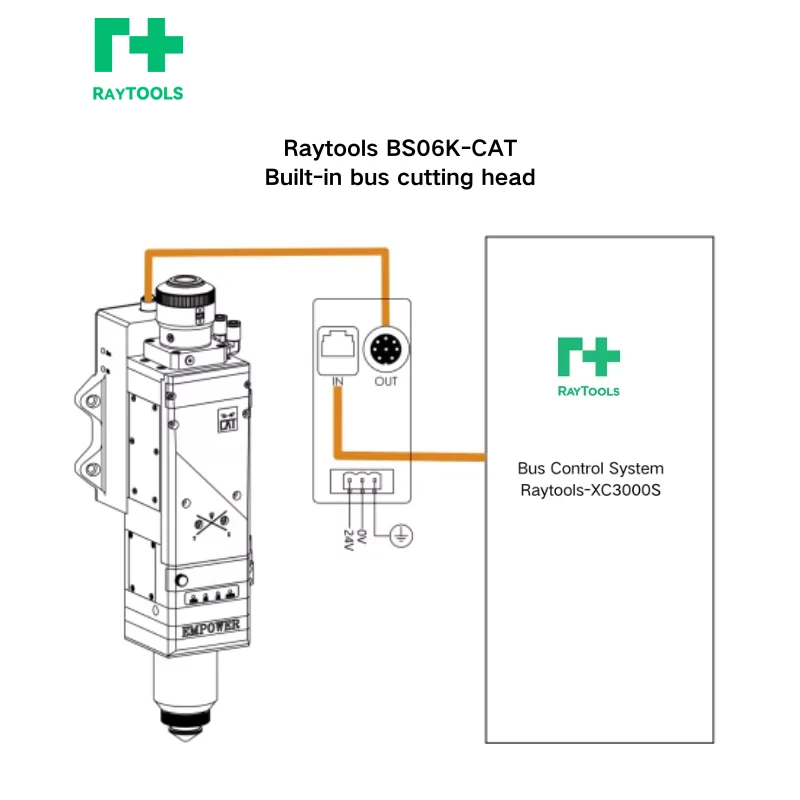

Product: BS06K-CAT + XC3000PLUS 2 IN 1 Solution

Power Application: up to 6kw/8kw

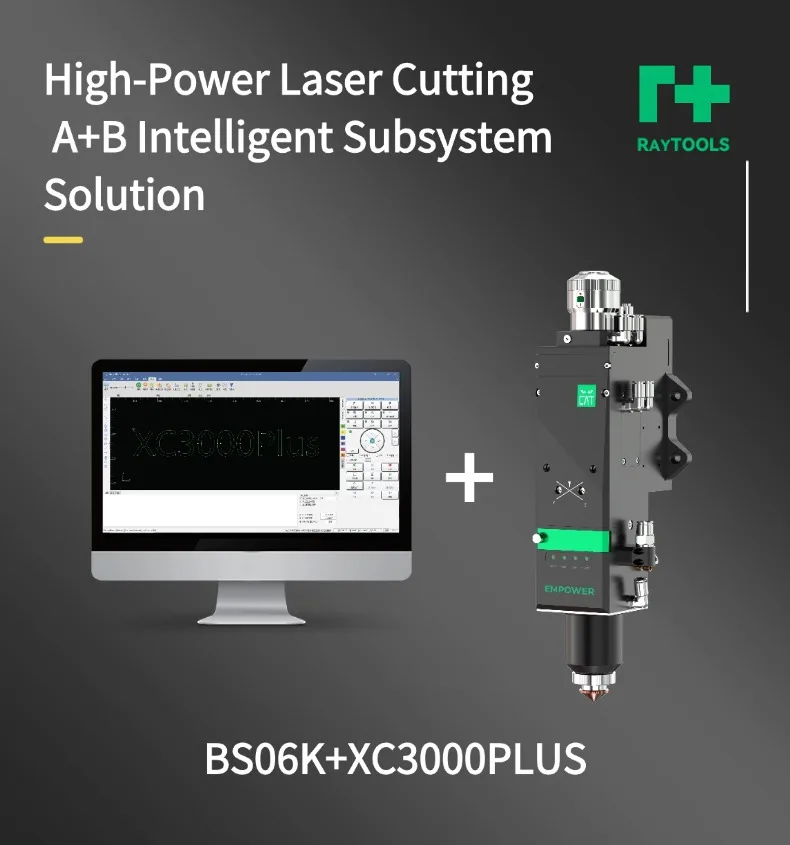

Laser Cutting A+B Intelligent Subsystem Solution

The Laser Cutting A+B Intelligent Subsystem Solution offers advantages such as pressure calibration, closed-loop pressure control,
high speed stable following, focal drift and thermal drift compensation, high effeciency material saving nesting, scattered light
detection, piercing detection and cloud+ wireless handheld APP integration.

product 2in1 kit raytools bs06k cat laser head xc3000plus controller fiber laser cutting parts kit for 6kw fiber laser cutting machine-8

product 2in1 kit raytools bs06k cat laser head xc3000plus controller fiber laser cutting parts kit for 6kw fiber laser cutting machine-9

product 2in1 kit raytools bs06k cat laser head xc3000plus controller fiber laser cutting parts kit for 6kw fiber laser cutting machine-10

System Functions			XC3000S	XC3000PRO	XC3000PLUS	XC6000
	Recommended Power Range (CAT Series)	CAT Series: up to 6 kW	Up to 6 kW	Above 6 kW	Above 6 kW
		CAT Series: up to 6 kW
							Non-CAT Series: up to 30 kW
Process Functions	Piercing Level	Level 5	Level 5	Level 5	Level 10
		Smooth Pierce 2.0	1	1	1	2
		Smart LaserOff	√	√	√	√
		Traceless MicroJoint 2.0	1	1	1	2
		Process Monitoring (Auto Re-cut)	×	×	×	√
		Intelligent Piercing	×	×	×	√
		Common-edge Piercing Detection	×	×	×	√
System Functions	Nest	√	√	√	√ Standard-equipped Advanced Nesting Software
		Auto Edge Finding (2-point, 3-point, 6-point)	√	√	√	√
		Disc Centering	√	√	√	√
		Corner Algorithm 2.0	1	1	2	2
		Short-path No Plate Probing	×	×	×	√
		Stray Light Detection (Lens Anti-explosion Protection)	×	×	√	√
Special Features	Single-job Coil Batch Processing	√	√	√	√
		Long-part Stitched Cutting	×	√		×
		Single-beam Dual-head	×	√		×
		On-the-fly Cutting	×	√		×
		Multi-job Coil Batch Processing (e.g., Ducts)	X3pro Software Installed	√	X3pro Software Installed	×

Our Service

Potential issues with the cutting head:

1）Fiber connector mismatch
2）Incompatible cutting head focusing mechanism
3）Incompatible cutting head height adjustment method
4）Incorrect focal length of the cutting head
5）Technical difficulties encountered during installation and operation without access to effective technical support

Potential issues with the system:

1）Password not provided in a timely manner
2）Technical difficulties encountered during installation and operation without access to effective technical support

Potential issues with the laser source:

1）Fiber optic connector mismatch
2）Password not provided in a timely manner
3）Technical issues arising during installation without access to technical support
4）Lack of professional after-sales service guidance, and inability to obtain effective technical support or spare parts when laser alarms occur

We can provide:

1) Professional sales expertise:Delivering comprehensive technical solutions to ensure compatibility among the system, cutting head, and laser source.
2)After-sales technical support: Offering remote technical assistance for any issues encountered during installation and operation, backed by a well-established after-sales service system.
3) Prompt password service: Timely provision of laser and system passwords.
